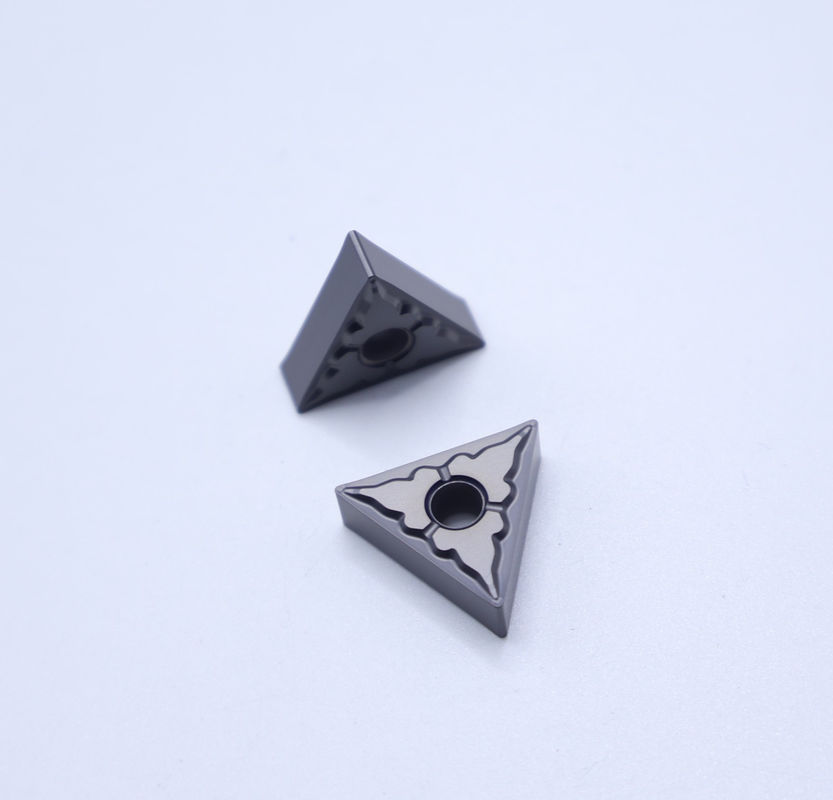

External Turning CNC Lathe Machine Inserts with HRA92.5 Hardness and PVD Coating

External Turning CNC Lathe Machine Inserts with HRA92.5 Hardness and PVD Coating

PV2210 CNC Lathe Machine Inserts

HRA92.5 Hardness CNC Lathe Machine Inserts

TNMG160404-MS1 CNC Lathe Machine Inserts

Place of Origin:

China

Brand Name:

Metcera

Certification:

ISO9001

Model Number:

TNMG160404-MS1

Contact Us
Request A Quote
External Turning CNC Lathe Machine Inserts with HRA92.5 Hardness and PVD Coating External Turning CNC Lathe Machine Inserts with HRA92.5 Hardness and PVD Coating
Product Details
Coating:
PVD Coating
Usage:
External Turning
Hardness:
HRA92.5
Material:
TiCN Cermet
Color:
Grey-black
Product Name:
TNMG160404-MS1
Grade:
PV2210
Workpiece:
Carbon Steel,Alloy Steel
Transport:
FedEX ,TNT,UPS,DHL
Highlight:

PV2210 CNC Lathe Machine Inserts

,

HRA92.5 Hardness CNC Lathe Machine Inserts

,

TNMG160404-MS1 CNC Lathe Machine Inserts

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
US$1.35 per piece
Packaging Details
10pcs in a plastic box
Delivery Time
5-8 Working Days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
10000pcs per Month
RELATED PRODUCTS
Good price TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance online

TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance

Get Best Price
Good price TiCN Cermet CNC Turning Inserts with 5FG Chip Breaker for Wear Resistance in Machining online Video

TiCN Cermet CNC Turning Inserts with 5FG Chip Breaker for Wear Resistance in Machining

Get Best Price
Good price Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning online Video

Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning

Get Best Price
Good price TNMG16 Negative CNC Turning Insert with 5MT Semi-Finish Chipbreakers and TiCN Cermet for Wear Resistance online Video

TNMG16 Negative CNC Turning Insert with 5MT Semi-Finish Chipbreakers and TiCN Cermet for Wear Resistance

Get Best Price
Contact Us
Contact Now
Product Description
External Turning CNC Lathe Machine Inserts HRA92.5 Hardness TNMG160404-MS1 PV2210
Product Overview
TNMG160404-MS1 PV2210 Cermet Insert

High-performance cermet inserts designed for external turning operations on CNC lathe machines, featuring exceptional hardness and durability.

Metcera Grade Specifications
Grade Color Coating Hardness (HV) Antioxidant Temp. (°C) Frictional Coefficient Coating Thickness (µm) Recommendation
PV1120 Golden 3500 900 0.3 2-2.5 Steel, Alloy HRC<50 Tempered Steel
PV2110 - - - - - -
PV3115 - - - - - -
PV1220 Grey-black 3500 900 0.3 2-2.5 Steel Machining
PV2210 - - - - - -
PV3212 - - - - - -
PV1320 Bronze 4200 1000 0.3 2-2.5 Stainless Steel, Steel HRC<50 Tempered Steel
PV2310 - - - - - -
PV3315 - - - - - -
Grade Density Base Material Hardness HV30 HRA Bending Strength (MPa)
MC1020 6.5 1650 93.0 1800
MC2010 6.8 1550 92.4 2300
MC3015 6.95 1520 92.0 2500
Material Technology

Ti(CN) based cermet is a new and prospective material which not only possesses the qualities of toughness, high thermal conductivity and good heat stability of metals, but also possesses the qualities of high hardness, high red hardness and corrosion resistance of ceramics. The unique physical and chemical properties of cermet make it promising in the manufacturing of special cutting tools, wear parts and corrosion-resistance parts.

Why Choose Our Products
  • 30 years focus on Cermet cutting tools only
  • Product performance equals the world-class brands
  • Our grade is equivalent to TN60, NX2525, CT3000, T1200A, CN2000, NS530, etc
  • ODM service is provided
  • 3 months warranty for exchange and return
  • Free sample is provided
Frequently Asked Questions
Are you a trading company or manufacturer?
We are manufacturer.
Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free.
What kind of payment terms do you accept?
T/T, West Union, Paypal, Credit Card and other main terms.
Do you provide customized product service?
Yes.
What kind of machines are you using?
Osterwalder presser, Agathon Grinder, Nachi manipulator, etc.
When is the lead time?
Normally 10 days after receiving your payment, but it can be negotiated based on order quantity and production schedule.
How can you guarantee the production quality?
Our company is based on ISO9001, we have more than 30 years experience of QC team and strictly quality control system. However, 90 days of free change is provided.
What about the package?
10pcs plastic box in 50pcs case, then in 500/1000 pcs cartons. Or custom packing as your requirements.

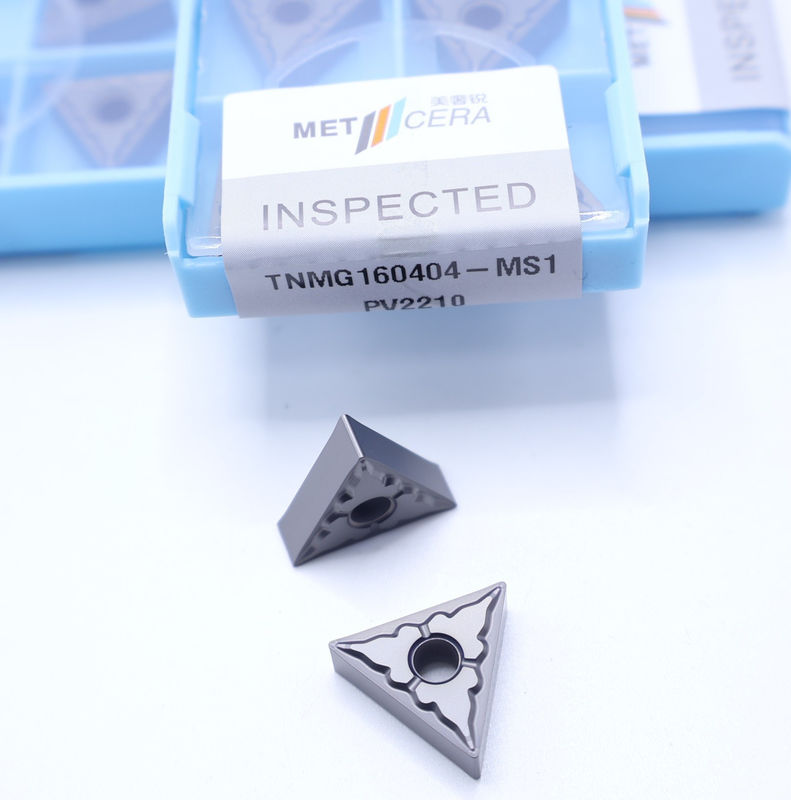

Cermet Insert Packaging and Quality
