TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance

TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance

Uncoated TiCN Cermet CNC Turning Inserts

Nice Surface CNC Turning Inserts

TNMG160404-FX

Place of Origin:

China

Brand Name:

Metcera

Certification:

ISO9001

Model Number:

TNMG160404-FX

Contact Us
Request A Quote
TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance
Product Details
Coating:
Uncoated
Usage:
External Turning
Hardness:
HRA92.5
Material:
TiCN Cermet
Color:
Gray
Product Name:
TNMG160404-FX
Workpiece:
Carbon Steel,Alloy Steel
Machining Method:
Finishing And Semi-Finishing
Advantage:
Wear Resistance
Application:
Finishing
Grade:
MC2010
Sample:
Free
Transport:
FedEX ,TNT,UPS,DHL
Highlight:

Uncoated TiCN Cermet CNC Turning Inserts

,

Nice Surface CNC Turning Inserts

,

TNMG160404-FX

Payment & Shipping Terms
Minimum Order Quantity
50 pcs
Price
US$2.60 per piece
Packaging Details
10pcs in a plastic box
Delivery Time
5-8 Working Days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
2.6 million pcs per Month
RELATED PRODUCTS
Good price TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance online

TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance

Get Best Price
Good price TiCN Cermet CNC Turning Inserts with 5FG Chip Breaker for Wear Resistance in Machining online Video

TiCN Cermet CNC Turning Inserts with 5FG Chip Breaker for Wear Resistance in Machining

Get Best Price
Good price Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning online Video

Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning

Get Best Price
Good price TNMG16 Negative CNC Turning Insert with 5MT Semi-Finish Chipbreakers and TiCN Cermet for Wear Resistance online Video

TNMG16 Negative CNC Turning Insert with 5MT Semi-Finish Chipbreakers and TiCN Cermet for Wear Resistance

Get Best Price
Contact Us
Contact Now
Product Description
Nice Surface TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX
Product Overview
TiCN Cermet CNC Turning Insert TNMG160404-FX

Ti(CN) based cermet is a new and prospective material that combines the toughness, high thermal conductivity, and excellent heat stability of metals with the high hardness, red hardness, and corrosion resistance of ceramics. These unique physical and chemical properties make cermet ideal for manufacturing special cutting tools, wear parts, and corrosion-resistant components.

Metcera Grade Specifications
Grade Color

Coating

Hardness (HV)

Antioxidant

Tem.( °C)

Frictional

Coefficent

Coating

Thickness(µm )

 Recommendation
PV1120 Golden 3500 900 0.3 2-2.5 Steel, Alloy
HRC<50 Tempered Steel
PV2110
PV3115
PV1220 Grey-black 3500 900 0.3 2-2.5 Steel Machining
PV2210
PV3212
PV1320 Bronze 4200 1000 0.3 2.-2.5 Stainless Steel, Steel
HRC<50 Tempered Steel
PV2310
PV3315

Grade Density Base Material Hardness Bending Strength(MPa)
HV30 HRA
MC1020 6.5 1650 93.0 1800
MC2010 6.8 1550 92.4 2300
MC3015 6.95 1520 92.0 2500
Why Choose Our Cermet Inserts
  • 30 years of specialized focus on Cermet cutting tools
  • Product performance equals world-class brands
  • Our grade is equivalent to TN60, NX2525, CT3000, T1200A, CN2000, NS530, etc.
  • ODM service provided
  • 3 months warranty for exchange and return
  • Free samples provided
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer.
Do you provide samples? Is it free or extra?
Yes, we offer samples for free.
What kind of payment terms do you accept?
T/T, Western Union, PayPal, Credit Card, and other major payment terms.
Do you provide customized product service?
Yes.
What kind of machines are you using?
Osterwalder presser, Agathon Grinder, Nachi manipulator, etc.
What is the lead time?
Normally 10 days after receiving your payment, but it can be negotiated based on order quantity and production schedule.
How do you guarantee production quality?
Our company is ISO9001 certified, with over 30 years of QC team experience and a strict quality control system. We provide 90 days of free exchange.
What about the packaging?
10pcs plastic box in 50pcs case, then in 500/1000 pcs cartons. Or custom packing as per your requirements.

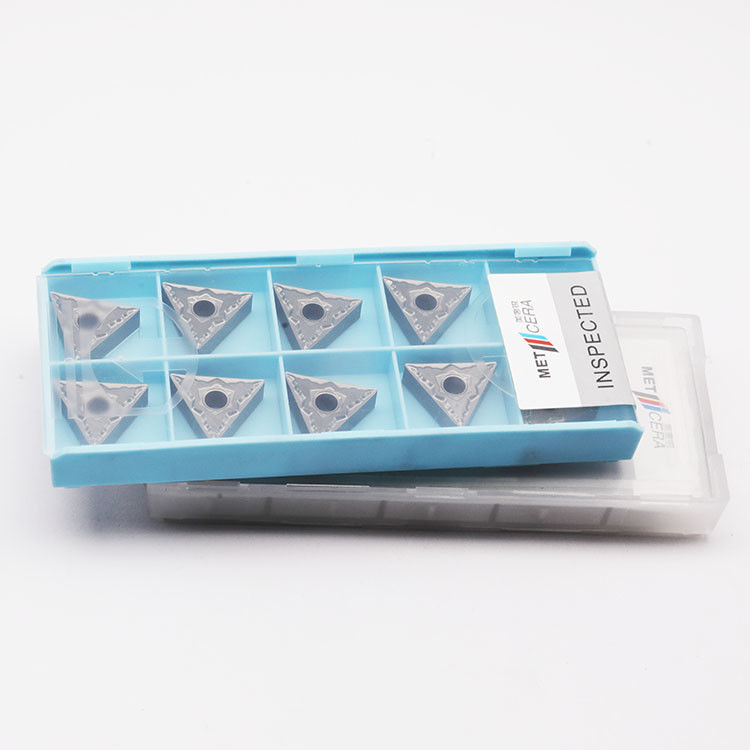

Cermet Insert Packaging and Application
