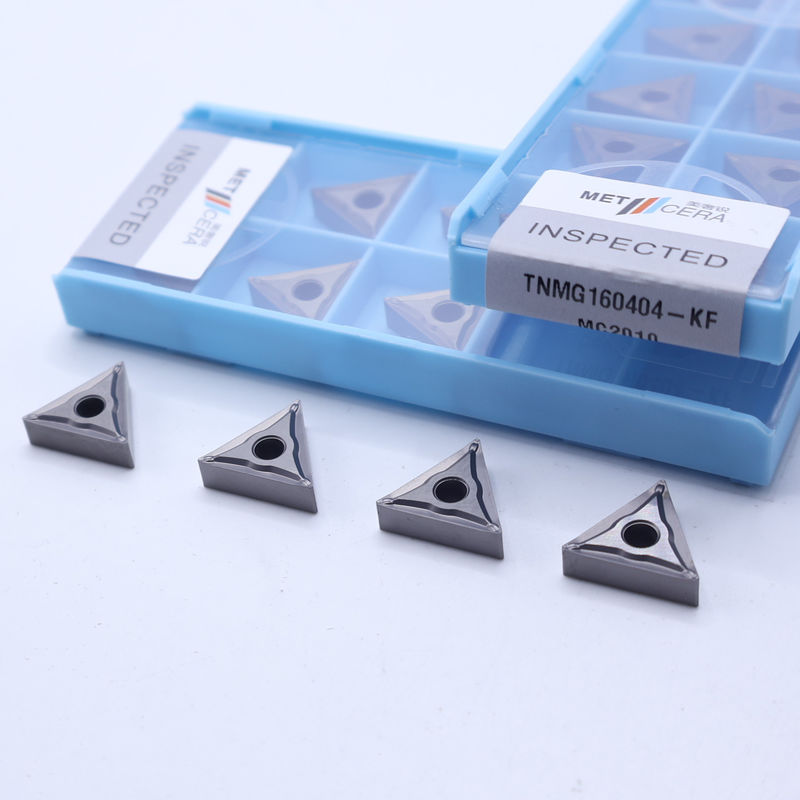

Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning

Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning

Negative Cermet Turning Insert

Uncoated Cermet Turning Insert

MC2010 Cermet Turning Insert

Place of Origin:

China

Brand Name:

Metcera

Certification:

ISO9001

Model Number:

TNMG160404-KF

Contact Us
Request A Quote
Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning
Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning
Product Details
Coating:
Uncoated ( PVD Coated Is Available)
Usage:
External Turning
Hardness:
HRA92.5
Material:
TiCN Cermet
Color:
Silver
Product Name:
TNMG160404-KF MC2010
Grade:
MC2010
Workpiece:
Carbon Steel,Alloy Steel
Transport:
FedEX ,TNT,UPS,DHL
Highlight:

Negative Cermet Turning Insert

,

Uncoated Cermet Turning Insert

,

MC2010 Cermet Turning Insert

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
pls send enquiry
Packaging Details
10pcs in a plastic box
Delivery Time
5-8 Working Days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
10000pcs per Month
RELATED PRODUCTS
Good price TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance online

TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance

Get Best Price
Good price TiCN Cermet CNC Turning Inserts with 5FG Chip Breaker for Wear Resistance in Machining online Video

TiCN Cermet CNC Turning Inserts with 5FG Chip Breaker for Wear Resistance in Machining

Get Best Price
Good price Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning online Video

Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning

Get Best Price
Good price TNMG16 Negative CNC Turning Insert with 5MT Semi-Finish Chipbreakers and TiCN Cermet for Wear Resistance online Video

TNMG16 Negative CNC Turning Insert with 5MT Semi-Finish Chipbreakers and TiCN Cermet for Wear Resistance

Get Best Price
Contact Us
Contact Now
Product Description
Uncoated Cermet Turning Insert, Negative Inserts TNMG160404-KF MC2010
Cermet turning insert technical specifications and grade comparison
Metcera Grade Specifications
Grade Color

Coating

Hardness (HV)

Antioxidant

Tem.( °C)

Frictional

Coefficent

Coating

Thickness(µm )

 Recommendation
PV1120 Golden 3500 900 0.3 2-2.5 Steel, Alloy
HRC<50 Tempered Steel
PV2110
PV3115
PV1220 Grey-black 3500 900 0.3 2-2.5 Steel Machining
PV2210
PV3212
PV1320 Bronze 4200 1000 0.3 2.-2.5 Stainless Steel, Steel
HRC<50 Tempered Steel
PV2310
PV3315

Grade Density Base Material Hardness Bending Strength(MPa)
HV30 HRA
MC1020 6.5 1650 93.0 1800
MC2010 6.8 1550 92.4 2300
MC3015 6.95 1520 92.0 2500

Cermet Technology Overview
Ti(CN) based cermet is a new and prospective material which not only possesses the qualities of toughness, high thermal conductivity and good heat stability of metals, but also possesses the qualities of high hardness, high red hardness and corrosion resistance of ceramics. The unique physical and chemical properties of cermet make it promising in the manufacturing of special cutting tools, wear parts and corrosion-resistance parts.
Why Choose Our Cermet Inserts
  • 30 years focus on Cermet cutting tools only
  • Product performance equals the world-class brands
  • Our grade is equivalent to TN60, NX2525, CT3000, T1200A, CN2000, NS530, etc
  • ODM service is provided
  • 3 months warranty for exchange and return
  • Free sample is provided
Frequently Asked Questions
Are you a trading company or manufacturer?
We are manufacturer.
Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free.
What kind of payment terms do you accept?
T/T, West Union, Paypal, Credit Card and other main terms.
Do you provide customized product service?
Yes.
What kind of machines are you using?
Osterwalder presser, Agathon Grinder, Nachi manipulator, etc.
When is the lead time?
Normally 10 days after receiving your payment, but it can be negotiated based on order quantity and production schedule.
How can you guarantee the production quality?
Our company is based on ISO9001, we have more than 30 years experience of QC team and strictly quality control system. However, 90 days of free change is provided.
What about the package?
10pcs plastic box in 50pcs case, then in 500/1000 pcs cartons. Or custom packing as your requirements.
Cermet insert packaging and additional product details
