High Wear Resistance PVD Coated Cermet Turning Inserts for HRC40 Steel CNC Machining

High Wear Resistance PVD Coated Cermet Turning Inserts for HRC40 Steel CNC Machining

lathe tool inserts

iso turning inserts

Place of Origin:

China

Brand Name:

Metcera

Certification:

ISO

Model Number:

WNMG080404-FX

Contact Us
Request A Quote
High Wear Resistance PVD Coated Cermet Turning Inserts for HRC40 Steel CNC Machining
High Wear Resistance PVD Coated Cermet Turning Inserts for HRC40 Steel CNC Machining High Wear Resistance PVD Coated Cermet Turning Inserts for HRC40 Steel CNC Machining High Wear Resistance PVD Coated Cermet Turning Inserts for HRC40 Steel CNC Machining
Product Details
Certification:
GB/T 19001-2016 /ISO9001:2015
Workpiece:
Steel
Coating:
PVD
Color:
Gold &Grey
Grade:
P
Hardness:
HRC40
Range Of Machining:
Semi-Finishing To Finishing
Highlight:

lathe tool inserts

,

iso turning inserts

Payment & Shipping Terms
Minimum Order Quantity
10 pcs
Price
US$1.14 Per Piece
Packaging Details
10pcs in one plastic box; 5 plastic boxes in one carton box
Delivery Time
5-8 Working Days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
100,000 pcs per month
RELATED PRODUCTS
Good price TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance online

TiCN Cermet CNC Turning Inserts Uncoated TNMG160404-FX with Wear Resistance

Get Best Price
Good price TiCN Cermet CNC Turning Inserts with 5FG Chip Breaker for Wear Resistance in Machining online Video

TiCN Cermet CNC Turning Inserts with 5FG Chip Breaker for Wear Resistance in Machining

Get Best Price
Good price Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning online Video

Uncoated TiCN Cermet Turning Insert TNMG160404-KF MC2010 with HRA92.5 Hardness for External Turning

Get Best Price
Good price TNMG16 Negative CNC Turning Insert with 5MT Semi-Finish Chipbreakers and TiCN Cermet for Wear Resistance online Video

TNMG16 Negative CNC Turning Insert with 5MT Semi-Finish Chipbreakers and TiCN Cermet for Wear Resistance

Get Best Price
Contact Us
Contact Now
Product Description

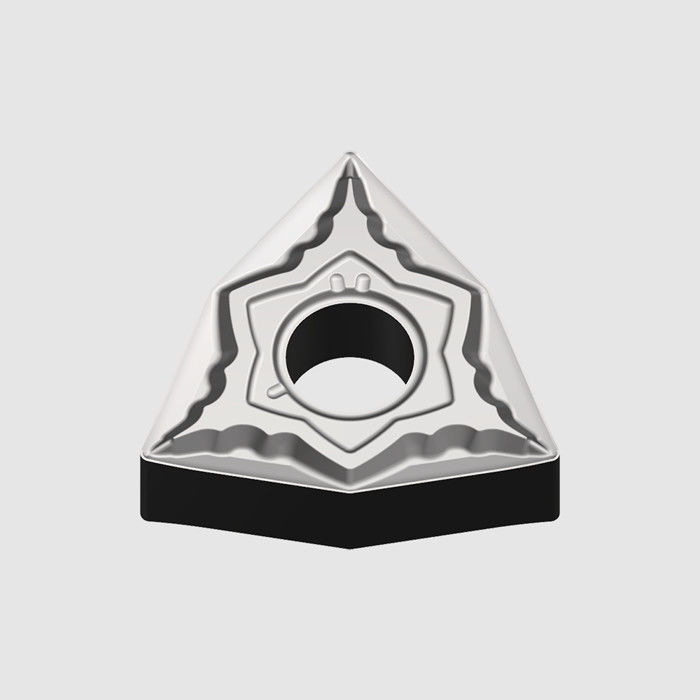

High Wear Cermet Turning Inserts Indexable Machining For Steel WNMG080404-FX
High Wear Cermet Turning Insert WNMG080404-FX
Metcera Grade Specifications
Coated Grades
Grade Color

Coating

Hardness (HV)

Antioxidant

Tem.( °C)

Frictional

Coefficent

Coating

Thickness(µm )

 Recommendation
PV1120 Golden 3500 900 0.3 2-2.5 Steel, Alloy
HRC<50 Tempered Steel
PV2110
PV3115
PV1220 Grey-black 3500 900 0.3 2-2.5 Steel Machining
PV2210
PV3212
PV1320 Bronze 4200 1000 0.3 2.-2.5 Stainless Steel, Steel
HRC<50 Tempered Steel
PV2310
PV3315

Grade Density Base Material Hardness Bending Strength(MPa)
HV30 HRA
MC1020 6.5 1650 93.0 1800
MC2010 6.8 1550 92.4 2300
MC3015 6.95 1520 92.0 2500
Material Technology

Ti(CN) based cermet is a new and prospective material which not only possesses the qualities of toughness, high thermal conductivity and good heat stability of metals, but also possesses the qualities of high hardness, high red hardness and corrosion resistance of ceramics. The unique physical and chemical properties of cermet make it promising in the manufacturing of special cutting tools, wear parts and corrosion-resistance parts.

Why Choose Our Cermet Inserts
  • 30 years focus on Cermet cutting tools only
  • Product performance equals the world-class brands
  • Our grade is equivalent to TN60, NX2525, CT3000, T1200A, CN2000, NS530, etc
  • ODM service is provided
  • 3 months warranty for exchange and return
  • Free sample is provided
Frequently Asked Questions
Are you a trading company or manufacturer?
We are manufacturer.
Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free.
What kind of payment terms do you accept?
T/T, West Union, Paypal, Credit Card and other main terms.
Do you provide customized product service?
Yes.
What kind of machines are you using?
Osterwalder presser, Agathon Grinder, Nachi manipulator, etc.
When is the lead time?
Normally 10 days after receiving your payment, but it can be negotiated based on order quantity and production schedule.
How can you guarantee the production quality?
Our company is based on ISO9001, we have more than 30 years experience of QC team and strictly quality control system. However, 90 days of free change is provided.
What about the package?
10pcs plastic box in 50pcs case, then in 500/1000 pcs cartons. Or custom packing as your requirements.
Cermet Insert Technical Specifications
