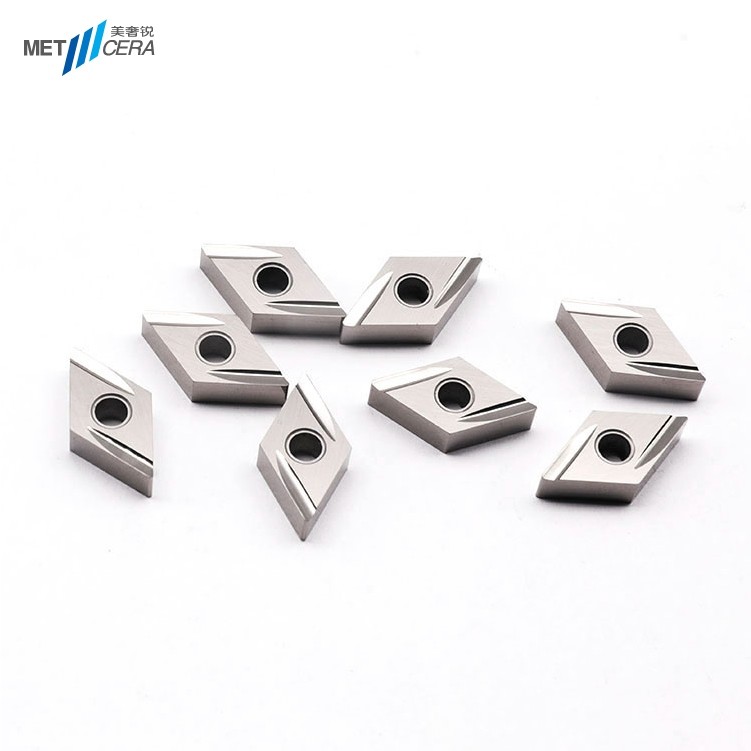

Machining Steel Cermet Turning Inserts High Surface Finishing DNGG110404R-C

Machining Steel Cermet Turning Inserts High Surface Finishing DNGG110404R-C

Machining Steel Cermet Turning Inserts

High Surface Finishing Cermet Turning Inserts

PVD Coating Steel CNC Turning Inserts

Place of Origin:

China

Brand Name:

Metcera

Certification:

ISO

Model Number:

DNGG160404R-C

Contact Us
Request A Quote
Product Details
Workpiece:
Low Carbon Steel Low Alloy Steel
Coating:
Uncoated ( PVD Coated Is Available)
Color:
Silver
Grade:
MC1020
Range Of Machining:
Semi Finishing And Finishing
Payment & Shipping Terms
Minimum Order Quantity
10 pcs
Price
US$2.17 per piece
Packaging Details
10pcs in one plastic box; 5 plastic boxes in one carton box
Delivery Time
5-8 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2.6 million pcs per month
Product Description

Machining Steel Cermet Turning Inserts High Surface Finishing DNGG110404R-C

Machining Steel Cermet Turning Inserts High Surface Finishing DNGG110404R-C 0



Description of Metcera Grade

Grade Color

Coating

Hardness (HV)

Antioxidant

Tem.( °C)

Frictional

Coefficent

Coating

Thickness(µm )

Recommendation
PV1120 Golden 3500 900 0.3 2-2.5 Steel, Alloy
HRC<50 Tempered Steel
PV2110
PV3115
PV1220 Grey-black 3500 900 0.3 2-2.5 Steel Machining
PV2210
PV3212
PV1320 Bronze 4200 1000 0.3 2.-2.5 Stainless Steel, Steel
HRC<50 Tempered Steel
PV2310
PV3315

Grade Density Base Material Hardness Bending Strength(MPa)
HV30 HRA
MC1020 6.5 1650 93.0 1800
MC2010 6.8 1550 92.4 2300
MC3015 6.95 1520 92.0 2500



Ti(CN) based cermet is a new and prospective material which not only possess the qualities of toughness,high thermal conductivity and good heat stability of metals,but also possess the qualities of high hardness,high red hardness and corrosion resistance of ceramics.The unique physical and chemical properties of cermet make is promising in the manufacturing of special cutting tools,wear parts and corrosion-resistance parts.





Why Choose us:



1, 30 years focus on Cermet cutting tools only

2, Product performance equals the world-class brands

3, Our grade is equivalent to TN60, NX2525, CT3000, T1200A, CN2000, NS530, etc

4, ODM service is provided

5, 3 months warranty for exchange and return

6, Free sample is provided





FAQ

Q:Are you trading company of manufacturer?

A:We are manufacturer.



Q:Do you provide samples?Is it free or extra?

A:Yes,we could offer the samples for free.



Q:What kind of payment terms you accept?

A:T/T,West Union,Paypal,Credit Card and other main terms.



Q:Do you provide customized product service?

A:Yes.



Q:What kind of machines are you using?

A:Osterwalder presser,Agathon Grinder,Nachi manipulator,etc.



Q:When is the leading time?

A:Normally 10 days after receiving your payment,but it can be negotiated based on order qty and production schedule.



Q:How can you guarantee the production quality?

A:Our company is based on ISO9001,we have more than 30 years experience of QC team and strictly quality control system.However,90 days of free change is provided.



Q:What about the package?

A:10pcs plastic box in 50pcs case,then in 500/1000 pcs cartons.Or custom packing as your requirements



Machining Steel Cermet Turning Inserts High Surface Finishing DNGG110404R-C 1
