All-Seiries CNC Cutting tools
| Place of Origin: | CHENGDU,CHINA |
|---|---|
| Brand Name: | Metcera |
| Certification: | ISO9001 |
| Model Number: | CNMG120404-FQ |
| Minimum Order Quantity: | 10pcs |
| Price: | $1.23 per Piece |
| Packaging Details: | 10pcs in a standard plastic box |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1.6 million pcs per Month |
| Coating: | Uncoated | Usage: | External Turning |
|---|---|---|---|
| Hardness: | HRA92.5 | Material: | TiCN Cermet |
| Color: | Gray /Golden /Metal | Product Name: | CNMG120404-FQ |
| Workpiece: | Carbon Steel,Alloy Steel | Item Name: | CNMG120404-FQ |
| Machining Method: | Finishing And Semi-Finishing | Advantage: | Wear Resistance |
| Application: | Finishing | Grade: | MC2010 |
| Sample: | Free | Transport: | FedEX ,TNT,UPS,DHL |
| High Light: | External Turning CNC Lathe Machine Inserts,HRA92.5 CNC Lathe Machine Inserts,CNC Lathe Machine Cermet Turning Inserts |
||

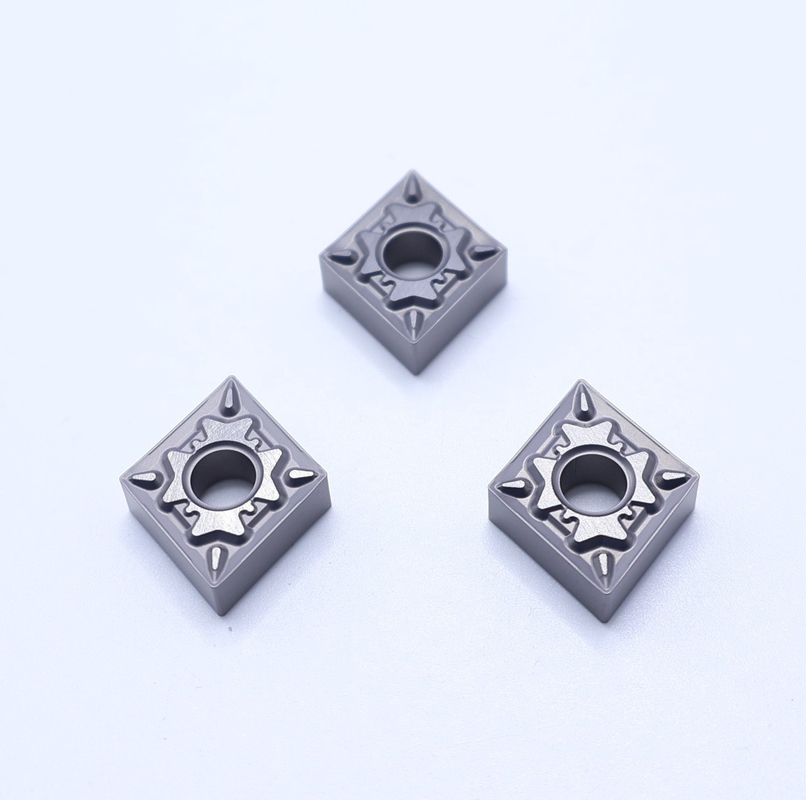

External Turning CNC Lathe Machine Inserts HRA92.5 Hardness CNMG120404-FQ
Description of Metcera Grade
| Grade |
Density (g/cm3) |
Hardness (HRA) | Transverse Rupture Strength(MPa |
Fracture Toughness (MPa*m1/2) |
Workpiece | Applications | Features |
| MC102A | 7.1 | 92.8 | 2000 | 8.5 | Aluminium Alloy, Nonferrous Alloy, Carbon Steel | Finishing, Semi-finishing, grooving | Low cutting force, high anti-adhensive, high quality roughness |
| MC102B | 7.1 | 93.2 | 1800 | 8.0 | Bearing Steel | ID/OD grooving, RD chamfer, sealing groove, in bearing industry | High red-hardness and wear resistance for dry cutting |
| MC1020 | 6.6 | 92.5 | 1600 | 9.5 | Carbon steel with hardness under 35HRC, Alloyed Steel | Finishing, Semi-finishing | Exordinary wear resistance in continous finishing machining. Provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials |
| MC2010 | 6.8 | 92.8 | 2100 | 9.0 | Carbon steel with hardness under 38HRC, Alloyed Steel | Finishing, Semi-finishing | Anti-collapse and wear resistance performance strengthened materials is utilized which can provide extra reliable roughness for extensive cutting conditions |
Thanks to the most advanced equipment,the highly qualified staff and the cutting edge technology we have obtained,our company has not only been ranked among the major manufacturers of metal cutting and processing tools in China,but also entered the global market actively.
QC:
Package:
Application of Cermet
Ti(CN) based cermet is a new and prospective material which not only possess the qualities of toughness,high thermal conductivity and good heat stability of metals,but also possess the qualities of high hardness,high red hardness and corrosion resistance of ceramics.The unique physical and chemical properties of cermet make is promising in the manufacturing of special cutting tools,wear parts and corrosion-resistance parts.
FAQ
Q:Are you trading company of manufacturer?
A:We are manufacturer.
Q:Do you provide samples?Is it free or extra?
A:Yes,we could offer the samples for free.
Q:What kind of payment terms you accept?
A:T/T,West Union,Paypal,Credit Card and other main terms.
Q:Do you provide customized product service?
A:Yes.
Q:What kind of machines are you using?
A:Osterwalder presser,Agathon Grinder,Nachi manipulator,etc.
Q:When is the leading time?
A:Normally 10 days after receiving your payment,but it can be negotiated based on order qty and production schedule.
Q:How can you guarantee the production quality?
A:Our company is based on ISO9001,we have more than 30 years experience of QC team and strictly quality control system.However,90 days of free change is provided.
Q:What about the package?
A:10pcs plastic box in 50pcs case,then in 500/1000 pcs cartons.Or custom packing as your requirements.
