Place of Origin: | CHENGDU,CHINA |
---|---|
Brand Name: | Metcera |
Certification: | ISO9001 |
Model Number: | CNGG120404L-H |
Minimum Order Quantity: | 50pcs |
Price: | 2.45$ per Piece |
Packaging Details: | 10pcs in a plastic box |
Delivery Time: | 5-8 Working Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 10000pcs per Month |
Coating: | Uncoated | Usage: | External Turning |
---|---|---|---|
Hardness: | HRA92.8 | Material: | TiCN Cermet |
Color: | Gray | Product Name: | CNGG120404L-H |
Workpiece: | Carbon Steel,Alloy Steel | Item Name: | CNGG120404L-C |
Machining Method: | Finishing | Advantage: | Wear Resistance |
Application: | Finishing | Grade: | MC2010 |
Sample: | Free | Transport: | FedEX ,TNT,UPS,DHL |
High Light: | lathe tool inserts,iso turning inserts |
Wear Resistance Cermet Turning Inserts Used In Machining Steels CNGG120404L-H
Description of Grade MC1020
Grade |
Density (g/cm³) |
Hardness (HRA) |
Transverse Rupture Strength(Mpa) |
Fracture Toughness |
Workpiece | Apllication | Features |
MC1020 | 6.8 | 92.5 | 2200 | 9.0 | Carbon steel with hardness under 35HRC, Alloyed Steel | Finishing,Semi-Finishing | Exordinary wear resistance in continous finishing machining. Provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials |
Application of Cermet
Ti(CN) based cermet is a new and prospective material which not only possess the qualities of toughness,high thermal conductivity and good heat stability of metals,but also possess the qualities of high hardness,high red hardness and corrosion resistance of ceramics.The unique physical and chemical properties of cermet make is promising in the manufacturing of special cutting tools,wear parts and corrosion-resistance parts.

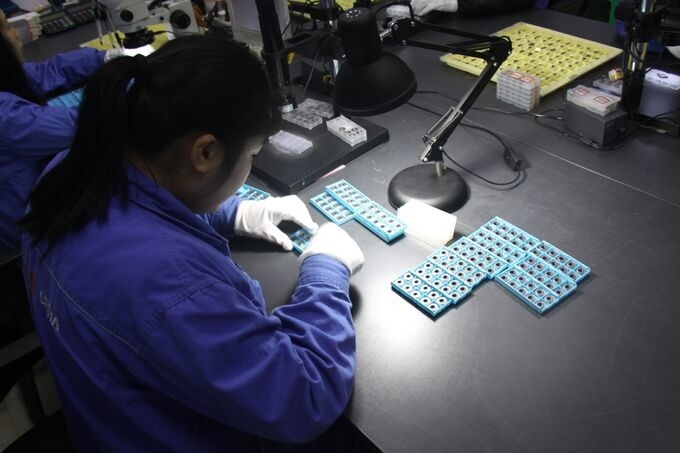

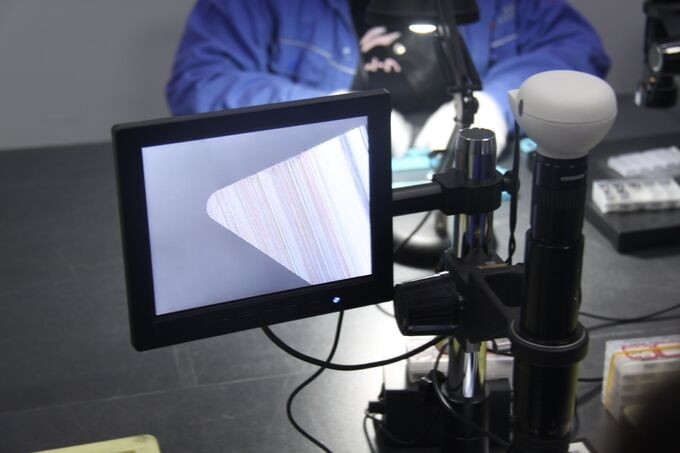

QC:

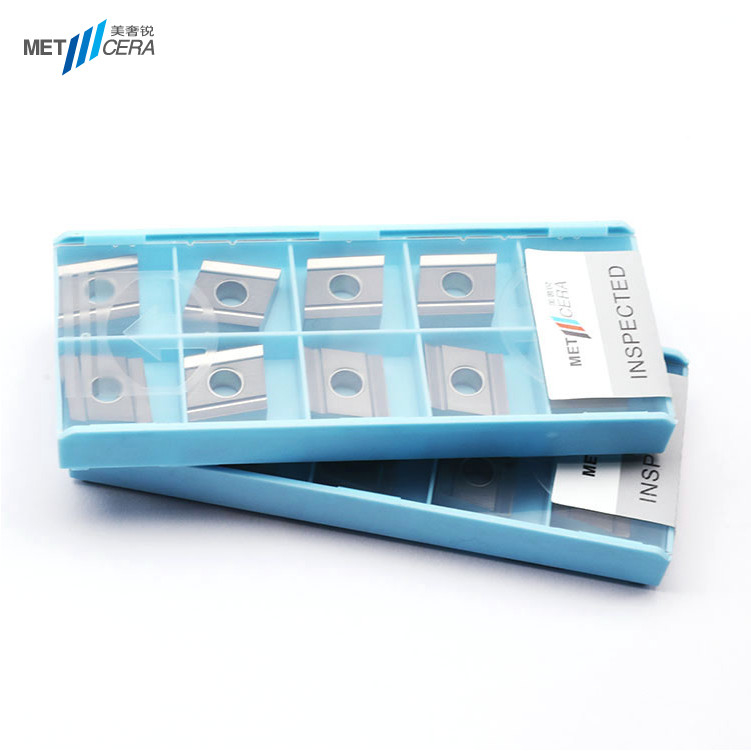

Package:
Advantages of cermet
1. High quality surface on the workpiece for finishing and semi-finishing.Turning/milling instead of grinding can be realized;
2. High oxidation resistance -High red hardness and high cutting speed in drying cutting (environmentally friendly);
3. High chemical stability-no bulit-up edge (no chemical interaction between workpiece and cutting edge);
4. Low density-low cost,light weight operation,low cutting force,low noise machining;
5. Natural resources advantage-less W&Co(strategic reserve resources)needed.In the long run,raw materials are easier to obtain.
