All-Seiries CNC Cutting tools
| Place of Origin: | China |
|---|---|
| Brand Name: | Metcera |
| Certification: | ISO |
| Model Number: | WNMG080404-FX |
| Minimum Order Quantity: | 10 pcs |
| Price: | USD $1.14/pc |
| Packaging Details: | 10pcs in one plastic box; 5 plastic boxes in one carton box |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100,000 pcs per month |
| Certification: | GB/T 19001-2016 /ISO9001:2015 | Workpiece: | Steel |
|---|---|---|---|
| Coating: | PVD | Color: | Gold &Grey |
| Hardness: | 40HRC | Range Of Machining: | Semi-Finishing To Finishing |
| Feature: | High Wear | ||
| High Light: | 40HRC Cermet Turning Inserts,Indexable Machining Cermet Turning Inserts,GB/T 19001-2016 cermet cutting tools |
||

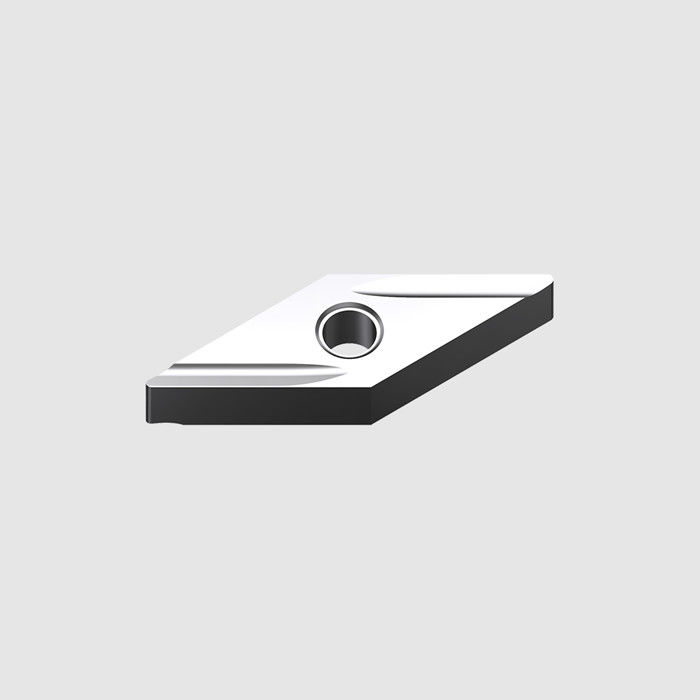

Indexable Machining High Wear Cermet Turning Inserts
quick detail
Cermet is also called titanium-based cemented carbide. It has excellent mechanical properties and high temperature performance, high hardness of ceramic materials, strong toughness of metal materials, and relatively low price. But for a long time, the application of cermet as a cutting tool material is far less extensive than other similar cemented carbides. In recent years, the development and application of cermet tool materials has gradually received attention, and its application scope has also been expanding
Technical Details
| Type | Size | Grade | |||
| WNMG080404-FX | I.C | S | Re | MC1020 | MC1120 |
| 12.7 | 4.76 | 0.4 | Y | Y | |
Advanced preparation technology of the whole industrial chain
Grade Introduction
|
Cermet Grade Introduction
|
|||||||
|
Grade |
Density (g/cm3) |
Hardness (HRA) |
Transverse Rupture Strength (MPa) |
Fracture Toughness (MPa*m1/2) |
Workpiece |
Applications |
Features |
|
MC1020 |
6.8 |
92.5 |
2200 |
9.0 |
Carbon steel with hardness under 28HRC, Alloyed Steel |
Finishing, Semi-finishing |
Exordinary wear resistance in continous finishing machining. Provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials |
|
MC1120 |
6.8 |
92.5 |
2200 |
9.0 |
Carbon steel with hardness under 28HRC, Alloyed Steel |
Finishing, Semi-finishing |
Exordinary wear resistance in continous finishing machining with TiC/Ti(CN) coating, provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials |
