High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC

High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC

lathe tool inserts

lathe turning inserts

Place of Origin:

China

Brand Name:

Metcera

Certification:

ISO

Model Number:

WNMG080408-MT

Contact Us
Request A Quote
Product Details
Name:
Cermet Turning Tool Inserts
Workpiece:
Aluminium Alloy
Coating:
PVD
Color:
Gold &Grey
Grade:
P10/P20
Hardness:
40HRC
Payment & Shipping Terms
Minimum Order Quantity
10 pcs
Price
USD $1.16/pc
Packaging Details
10pcs in one plastic box; 5 plastic boxes in one carton box
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100,00 pcs per month
Product Description

High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC



Ti (C,N) based cermet is a new and prospective material which not only possess the qualities

of toughness, high thermal conductivity and good heat stability of matals, but also possess

the qualities of high hardness, high red hardness and corrosion resistance of ceramics.



Features

High Wear Resistant
High Impact Resistant
Excellent Hardness
High Temperature Resistance/Great High Temperature Performance
Multi-coated
High Precision
Competitive Price
Quality Assurance.(Every piece of insert is inspected.)
Good After-sale service
Convenient Payment Terms and Shipments

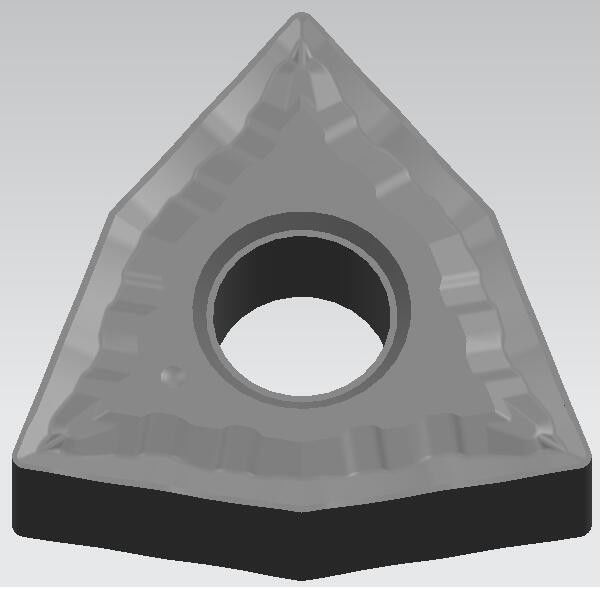

WNMG080408-MT

High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC 0





1. Description



Material: Cermet

Type: WNMG080408-MT

Origin: China

Application: Turning

Advantage: Long Life Time &Fine Finishing

Grades: MC2010, MC2210

ISO grade: P10, P20

Coating: Coating or uncoating

Lead time: Within one week normally

Term of payment : T/T





2. Technical Details

  • MT Chip Breaker

High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC 1



  • Size &Grade
Type Size Grade
WNMG080408-MT I.C S Re MC2010 MC2210
12.7 4.76 0.8 Y Y

  • High surface finishing and semi-finishing on the workpiece.
  • High oxidation resistance
  • Hign chemical stability
  • Low density
  • Natural resources advantag



3. ​Advanced preparation technology of the whole industrial chain



High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC 2



























High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC 3













































4. Grade Introduction

Cermet Grade Introduction



Grade



Density

(g/cm3)



Hardness

(HRA)

Transverse Rupture Strength

(MPa)

Fracture Toughness (MPa*m1/2)

Workpiece

 Applications

Features

MC2010

6.8

92.8

2100

9.0

Carbon steel with hardness under 35HRC, Alloyed Steel

Finishing,

Semi-finishing

Anti-collapse and wear resistance performance strengthened materials is utilized which can provide extra reliable roughness for extensive cutting conditions

MC2210

 6.8

92.8

2100

9.0

Carbon steel with hardness under 36HRC, Alloyed Steel

Finishing,

Semi-finishing

High lubricant performance PVD coating is used in this grade to realize the high class machining. It is a coated cermet with both high wear resistance to ensure high class surface machining in univeral applications





5. Inspection



High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC 4High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC 5





6.Package



High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC 6High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC 7

High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC 8High Impact Toughness Cermet Turning Inserts Gold & Grey Color 40HRC 9
