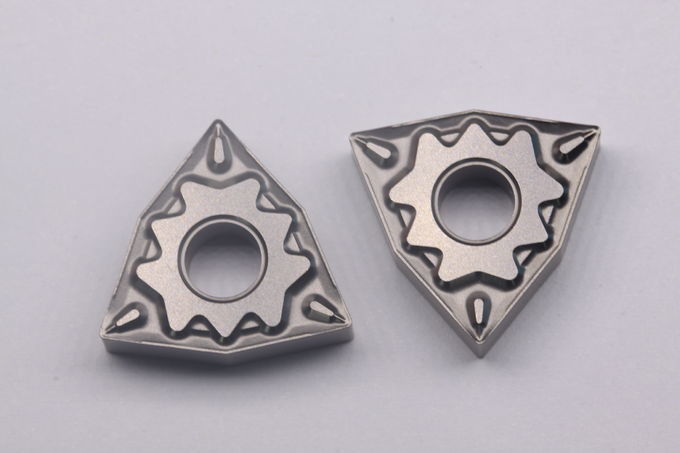

Customized Compact CNC Turning Inserts P10 Grade WNMG080404-HQ

Customized Compact CNC Turning Inserts P10 Grade WNMG080404-HQ

cnc tool insert

lathe machine inserts

Place of Origin:

China

Brand Name:

Metcera

Certification:

ISO

Model Number:

WNMG080404-FQ

Contact Us
Request A Quote
Product Details
Coating:
PVD
Color:
Gold &Grey
Grade:
P10
Workpiece:
Aluminium Alloy &Carbon Steel
Certification:
GB/T 19001-2016 /ISO9001:2015
Hardness:
40HRC
Feature:
Anti Corrosion
Payment & Shipping Terms
Minimum Order Quantity
10 pcs
Price
USD $1.13/pc
Packaging Details
10pcs in one plastic box; 5 plastic boxes in one carton box
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100,000 pcs per month
Product Description

Customized Compact CNC Turning Inserts P10 Grade WNMG080404-HQ

The Cermets turning inserts we produce has special strength and toughness.

We accept OEM and ODM, and can make unmarked or customized marking.

The common types are always in stock, we can offer free samples for testing.



Feature

Excellent wear resistance enables high cutting speeds
Cermet maintains good surface finished due to the low affinity to workpiece material.





1. Description



Material: Cermet

Type: WNMG080404-FQ

Origin: China

Application: Turning

Advantage: Long Life Time &Fine Finishing

Grades: MC1020, MC1120

ISO grade: P10, P20

Coating: Coating or uncoating

Lead time: Within one week normally

Term of payment : T/T





2. Technical Details

  • FQ Chip Breaker
  • Size &Grade
Type Size Grade
WNMG080404-FQ I.C S Re MC1020 MC1120
12.7 4.76 0.4 Y



Y


  • High quality surface on the workpiece for finishing and semi-finishing. Turning/milling instead of grinding can be realized
  • High chemical stability--No Built- up edge (No chemical interaction between workpiece and cutting edge);
  • Low density--Low cost, lightweight operation; low cutting force-- low noise machining;
  • Natural resources advantage--Less W &Co (Strategic reserve resources) needed. In the long run, raw materials are easier to obtain.



3. ​Advanced preparation technology of the whole industrial chain



Customized Compact CNC Turning Inserts P10 Grade WNMG080404-HQ 0































4. Grade Introduction



Cermet Grade Introduction



Grade



Density

(g/cm3)



Hardness

(HRA)

Transverse Rupture Strength

(MPa)

Fracture Toughness (MPa*m1/2)

Workpiece

 Applications

Features

MC2010

6.8

92.8

2100

9.0

Carbon steel with hardness under 35HRC, Alloyed Steel

Finishing,

Semi-finishing

Anti-collapse and wear resistance performance strengthened materials is utilized which can provide extra reliable roughness for extensive cutting conditions

MC2210

 6.8

92.8

2100

9.0

Carbon steel with hardness under 36HRC, Alloyed Steel

Finishing,

Semi-finishing

High lubricant performance PVD coating is used in this grade to realize the high class machining. It is a coated cermet with both high wear resistance to ensure high class surface machining in univeral applications





5. Inspection



Customized Compact CNC Turning Inserts P10 Grade WNMG080404-HQ 1Customized Compact CNC Turning Inserts P10 Grade WNMG080404-HQ 2





6.Package



Customized Compact CNC Turning Inserts P10 Grade WNMG080404-HQ 3Customized Compact CNC Turning Inserts P10 Grade WNMG080404-HQ 4

Customized Compact CNC Turning Inserts P10 Grade WNMG080404-HQ 5Customized Compact CNC Turning Inserts P10 Grade WNMG080404-HQ 6
