PVD Coating CNC Grooving Insert Cermet Insert For CNC Lathe Machine Long Life Time MGGN 300

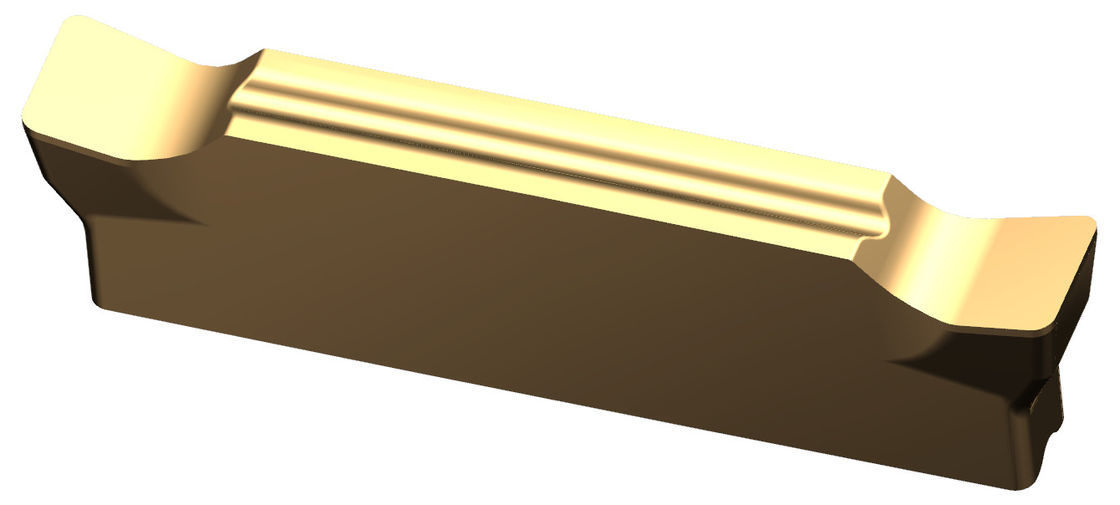

PVD Coating CNC Cermet Grooving Insert For CNC Lathe Machine Long Life Time MGMN300-03-G
Metcera Grade Specifications
| Grade |
Color |
Coating
Hardness (HV)
|
Antioxidant
Tem.( °C)
|
Frictional
Coefficent
|
Coating
Thickness(µm )
|
Recommendation |
| PV1120 |
Golden |
3500 |
900 |
0.3 |
2-2.5 |
Steel, Alloy
HRC<50 Tempered Steel |
| PV2110 |
| PV3115 |
| PV1220 |
Grey-black |
3500 |
900 |
0.3 |
2-2.5 |
Steel Machining |
| PV2210 |
| PV3212 |
| PV1320 |
Bronze |
4200 |
1000 |
0.3 |
2.-2.5 |
Stainless Steel, Steel
HRC<50 Tempered Steel |
| PV2310 |
| PV3315 |
|
| Grade |
Density |
Base Material Hardness |
Bending Strength(MPa) |
| HV30 |
HRA |
| MC1020 |
6.5 |
1650 |
93.0 |
1800 |
| MC2010 |
6.8 |
1550 |
92.4 |
2300 |
| MC3015 |
6.95 |
1520 |
92.0 |
2500 |
Coating Properties
Base Material Properties
About Cermet Material
Ti(CN) based cermet is a new and prospective material which not only possesses the qualities of toughness, high thermal conductivity and good heat stability of metals, but also possesses the qualities of high hardness, high red hardness and corrosion resistance of ceramics. The unique physical and chemical properties of cermet make it promising in the manufacturing of special cutting tools, wear parts and corrosion-resistance parts.
Why Choose Us
- 30 years focus on Cermet cutting tools only
- Product performance equals the world-class brands
- Our grade is equivalent to TN60, NX2525, CT3000, T1200A, CN2000, NS530, etc
- ODM service is provided
- 3 months warranty for exchange and return
- Free sample is provided
Frequently Asked Questions
Are you trading company or manufacturer?
We are manufacturer.
Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free.
What kind of payment terms you accept?
T/T, West Union, Paypal, Credit Card and other main terms.
Do you provide customized product service?
Yes.
What kind of machines are you using?
Osterwalder presser, Agathon Grinder, Nachi manipulator, etc.
When is the lead time?
Normally 10 days after receiving your payment, but it can be negotiated based on order quantity and production schedule.
How can you guarantee the production quality?
Our company is based on ISO9001, we have more than 30 years experience of QC team and strictly quality control system. However, 90 days of free change is provided.
What about the package?
10pcs plastic box in 50pcs case, then in 500/1000 pcs cartons. Or custom packing as your requirements.
