Grey & Gold Color ISO Turning Inserts CNC Lathe Cutting Tools 40HRC Hardness

Grey & Gold Color ISO Turning Inserts CNC Lathe Cutting Tools 40HRC Hardness

Excellent wear resistance enables high cutting speeds
Cermet maintains good surface finished due to the low affinity to material.

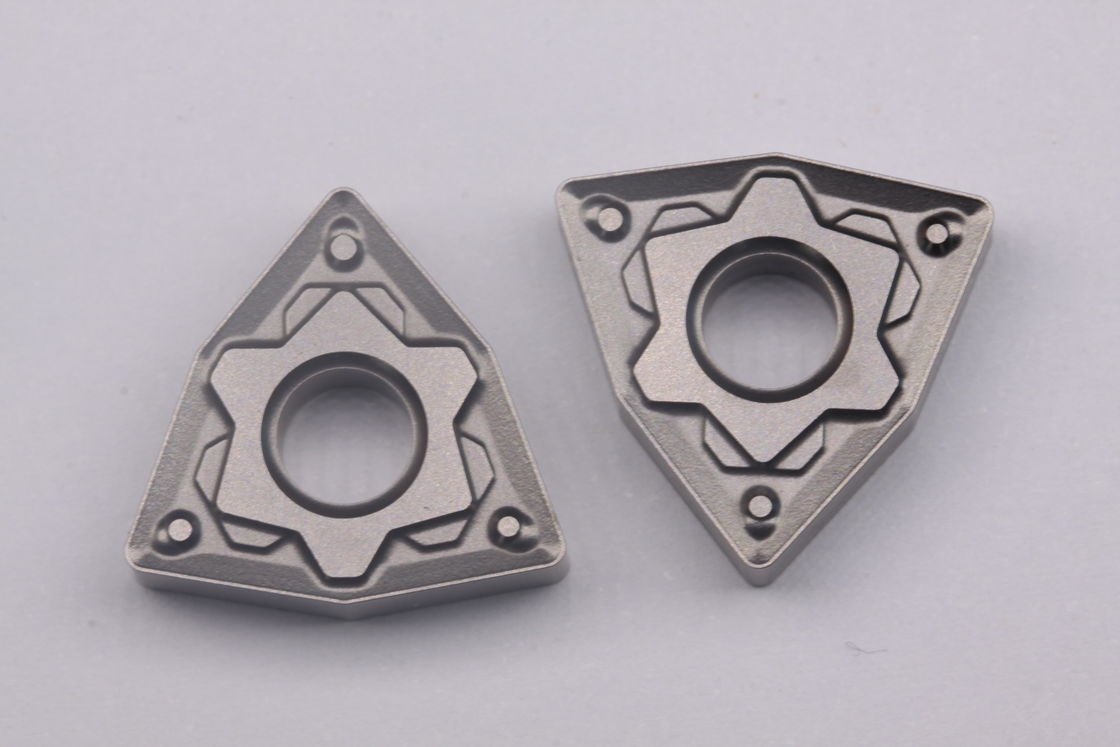

WNMG080408-HS





1. Description



Type: Turning Insert

Material: Cermet

Model Number: WNMG080408-HS

Origin: China

Application: Turning

Advantage: Long life time

Grades: MC1020

ISO grade: P10, P20

Coating: Coating or uncoating

Lead time: Within one week normally

Term of payment : T/T





2. What is cermet



Cermet is a cutting tool material composed mainly of TiC (Titanium Carbide) and TiN (Titanium Nitride). The name, cermet, is derived from the words CERAMIC and METAL (representing carbide).





3. Advantages of Cermet



The advantages of this material grade are high-quality and excellent surface finishes can be achieved with elevated cutting speeds. Cermets provide extended tool life.

•  High quality surface on the workpiece for finishing and semi-finishing. Turning/milling instead of grinding can be realized;



•  High oxidation resistance--high red hardness and high cutting speed in dry cutting (Environmentally friendly);



•  Hign chemical stability--No Built- up edge (No chemical interaction between workpiece and cutting edge);



• Low density--Low cost, lightweight operation; low cutting force-- low noise machining;



• Natural resources advantage--Less W &Co (Strategic reserve resources) needed. In the long run, raw materials are easier to obtain.





4. ​Advanced preparation technology of the whole industrial chain









































4. Grade Introduction



Cermet Grade Introduction
Grade	Density (g/cm3)	Hardness (HRA)	Transverse Rupture Strength (MPa)	Fracture Toughness (MPa*m1/2)	Workpiece	Applications	Features
MC1020	6.8	92.5	2200	9.0	Carbon steel with hardness under 28HRC, Alloyed Steel	Finishing, Semi-finishing	Exordinary wear resistance in continous finishing machining. Provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials
MC1120	6.8	92.5	2200	9.0	Carbon steel with hardness under 28HRC, Alloyed Steel	Finishing, Semi-finishing	Exordinary wear resistance in continous finishing machining with TiC/Ti(CN) coating, provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials





5. Package



6. Manufacture &Office

• Manufacture



• Automatic Production Line



• Office Building







7. Why Choose Us

• The sole one in China own all the technologies of every process.



• Equipped with the best machines, like press machine from Osterwalder, Grinder from Agathon.



• ODM service is provided.
