High Performance Cermet Indexable Bearing Inserts ISO Standard RPGT1203-BB MC102B

High Performance Cermet Indexable Bearing Inserts ISO Standard RPGT1203-BB MC102B

High Performance Indexable Milling Inserts

ISO Standard Indexable Milling Inserts

Cermet CNC Milling Inserts

Place of Origin:

China

Brand Name:

Metcera

Certification:

ISO

Model Number:

RPGT1203-BB

Contact Us
Request A Quote
Product Details
Materials:
Cermet
Highlight:

High Performance Indexable Milling Inserts

,

ISO Standard Indexable Milling Inserts

,

Cermet CNC Milling Inserts

Payment & Shipping Terms
Minimum Order Quantity
50 pcs
Price
US$1.99 per piece
Packaging Details
10pcs in a standard plastic box
Delivery Time
15-20 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1.6 million pcs per month
Product Description

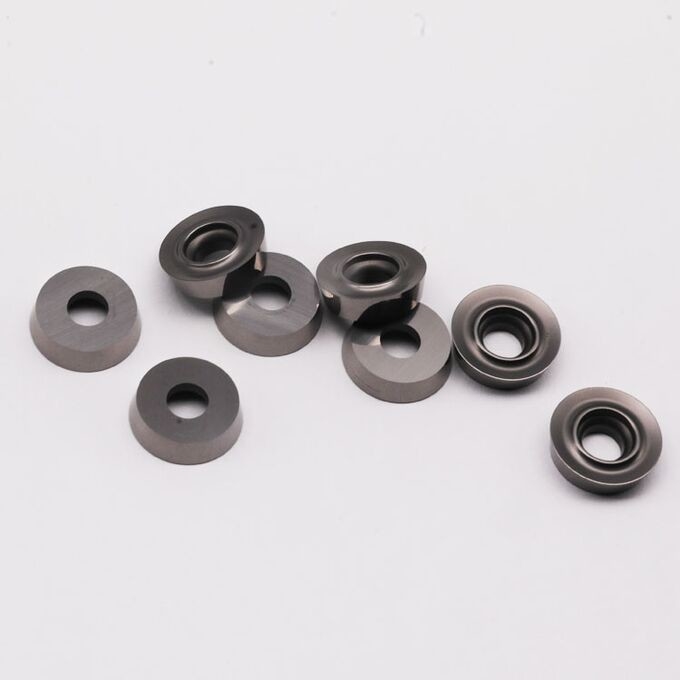

High Performance Cermet Indexable Bearing Inserts ISO Standard RPGT1203-BB MC102B

High Performance Cermet Indexable Bearing Inserts ISO Standard RPGT1203-BB MC102B 0



Description of Metcera Grade

Grade Density
(g/cm3)
Hardness (HRA) Transverse Rupture
Strength(MPa)
Fracture Workpiece Applications Features
Toughness
(MPa*m1/2)
MC102A 7.1 92.8 2000 8.5 Aluminium Alloy
Nonferrous Alloy
Carbon Steel
Finishing,
Semi-finishing,
Grooving
Low cutting force, high anti-adhensive, high quality roughness
MC102B 7.1 93.2 1800 8 Bearing Steel ID/OD Grooving,
RD chamfer,
Sealing groove,
in bearing industry
High red-hardness and wear resistance for dry cutting
MC1020 6.6 92.5 1600 9.5 Carbon steel HRC<35
Alloyed Steel
Finishing,
Semi-finishing
Exordinary wear resistance in continous finishing machining. Provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials
MC2010 6.8 92.8 2100 9 Carbon steel HRC<38
Alloyed Steel
Finishing,
Semi-finishing
Anti-collapse and wear resistance performance strengthened materials is utilized which can provide extra reliable roughness for extensive cutting conditions







Ti(CN) based cermet is a new and prospective material which not only possess the qualities of toughness,high thermal conductivity and good heat stability of metals,but also possess the qualities of high hardness,high red hardness and corrosion resistance of ceramics.The unique physical and chemical properties of cermet make is promising in the manufacturing of special cutting tools,wear parts and corrosion-resistance parts.





Why Choose us:



1, 30 years focus on Cermet cutting tools only

2, Product performance equals the world-class brands

3, Our grade is equivalent to TN60, NX2525, CT3000, T1200A, CN2000, NS530, etc

4, ODM service is provided

5, 3 months warranty for exchange and return

6, Free sample is provided





FAQ

Q:Are you trading company of manufacturer?

A:We are manufacturer.



Q:Do you provide samples?Is it free or extra?

A:Yes,we could offer the samples for free.



Q:What kind of payment terms you accept?

A:T/T,West Union,Paypal,Credit Card and other main terms.



Q:Do you provide customized product service?

A:Yes.



Q:What kind of machines are you using?

A:Osterwalder presser,Agathon Grinder,Nachi manipulator,etc.



Q:When is the leading time?

A:Normally 10 days after receiving your payment,but it can be negotiated based on order qty and production schedule.



Q:How can you guarantee the production quality?

A:Our company is based on ISO9001,we have more than 30 years experience of QC team and strictly quality control system.However,90 days of free change is provided.

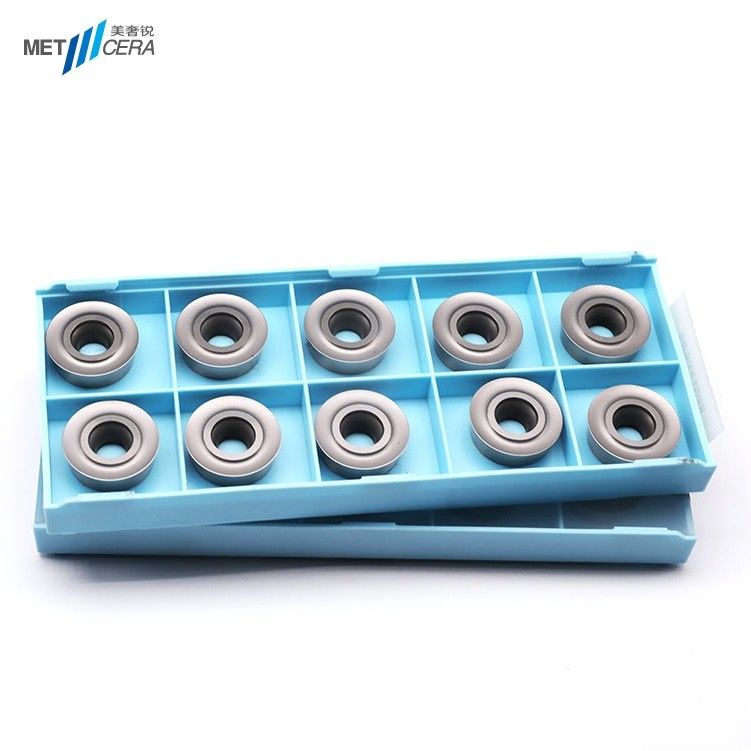

Q:What about the package?

A:10pcs plastic box in 50pcs case,then in 500/1000 pcs cartons.Or custom packing as your requirements.
