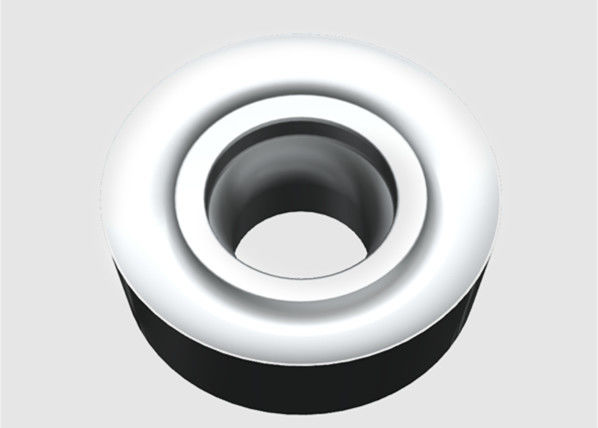

MC1020 Grade TiCN Cermet Insert RPMT1604-BB Turning Tool with Wear Resistance for Finishing

MC1020 Grade TiCN Cermet Insert RPMT1604-BB Turning Tool with Wear Resistance for Finishing

cnc tool insert

lathe machine inserts

Place of Origin:

China

Brand Name:

Metcera

Certification:

ISO9001

Model Number:

RPMT1604-BB

Contact Us
Request A Quote
MC1020 Grade TiCN Cermet Insert RPMT1604-BB Turning Tool with Wear Resistance for Finishing
Product Details
Coating:
Uncoated
Usage:
External Turning
Hardness:
HRA92.5
Material:
TiCN Cermet
Color:
Silver
Product Name:
RPMT1604-BB
Workpiece:
Carbon Steel,Alloy Steel
Machining Method:
Semi-Finishing & Finishing
Advantage:
Wear Resistance
Grade:
MC1020
Sample:
Free
Transport:
FedEX ,TNT,UPS,DHL
Highlight:

cnc tool insert

,

lathe machine inserts

Payment & Shipping Terms
Minimum Order Quantity
50 pcs
Price
US$1.88 per piece
Packaging Details
10pcs in a plastic box
Delivery Time
5-8 Working Days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
10000pcs per Month
RELATED PRODUCTS
Good price High Efficiency Cermet Bearing Inserts for Steel Finishing with TiCN Material SNHN150400 MC102B online

High Efficiency Cermet Bearing Inserts for Steel Finishing with TiCN Material SNHN150400 MC102B

Get Best Price
Good price TiCN Based Cermet Bearing Inserts High Resistance Uncoated Wear Resistance F12 online

TiCN Based Cermet Bearing Inserts High Resistance Uncoated Wear Resistance F12

Get Best Price
Good price Wear Resistant HRA92.5 Hardness TiCN Cermet Bearing Insert for External Turning online

Wear Resistant HRA92.5 Hardness TiCN Cermet Bearing Insert for External Turning

Get Best Price
Good price Steel Cermet Bearing Inserts F12 with TiCN Material and Polished Surface for ISO Standard Applications online

Steel Cermet Bearing Inserts F12 with TiCN Material and Polished Surface for ISO Standard Applications

Get Best Price
Contact Us
Contact Now
Product Description
MC1020 Grade Cermet Round Insert Turning Tool Anti Corrosion RPMT1604-BB
MC1020 Grade Cermet Round Insert Turning Tool
Metcera Grade Specifications
Grade Density (g/cm³) Hardness (HRA) Transverse Rupture Strength (MPa) Fracture Toughness (MPa·m¹/²) Workpiece Applications Features
MC102A 7.1 92.8 2000 8.5 Aluminium Alloy, Nonferrous Alloy, Carbon Steel Finishing, Semi-finishing, Grooving Low cutting force, high anti-adhesive, high quality roughness
MC102B 7.1 93.2 1800 8 Bearing Steel ID/OD Grooving, RD chamfer, Sealing groove, in bearing industry High red-hardness and wear resistance for dry cutting
MC1020 6.6 92.5 1600 9.5 Carbon steel HRC<35, Alloyed Steel Finishing, Semi-finishing Extraordinary wear resistance in continuous finishing machining. Provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. High wear resistance and high cost performance uncoated materials
MC2010 6.8 92.8 2100 9 Carbon steel HRC<38, Alloyed Steel Finishing, Semi-finishing Anti-collapse and wear resistance performance strengthened materials is utilized which can provide extra reliable roughness for extensive cutting conditions
Cermet Material Properties

Ti(CN) based cermet is a new and prospective material which not only possesses the qualities of toughness, high thermal conductivity and good heat stability of metals, but also possesses the qualities of high hardness, high red hardness and corrosion resistance of ceramics. The unique physical and chemical properties of cermet make it promising in the manufacturing of special cutting tools, wear parts and corrosion-resistance parts.

Why Choose Our Cermet Tools
  • 30 years focus on Cermet cutting tools only
  • Product performance equals the world-class brands
  • Our grade is equivalent to TN60, NX2525, CT3000, T1200A, CN2000, NS530, etc
  • ODM service is provided
  • 3 months warranty for exchange and return
  • Free sample is provided
Frequently Asked Questions
Are you a trading company or manufacturer?
We are manufacturer.
Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free.
What kind of payment terms do you accept?
T/T, West Union, Paypal, Credit Card and other main terms.
Do you provide customized product service?
Yes.
What kind of machines are you using?
Osterwalder presser, Agathon Grinder, Nachi manipulator, etc.
When is the lead time?
Normally 10 days after receiving your payment, but it can be negotiated based on order quantity and production schedule.
How can you guarantee the production quality?
Our company is based on ISO9001, we have more than 30 years experience of QC team and strictly quality control system. However, 90 days of free change is provided.
What about the package?
10pcs plastic box in 50pcs case, then in 500/1000 pcs cartons. Or custom packing as your requirements.
Cermet Insert Manufacturing Process
