products

Bending Resistant Cermet Turning Inserts For Mining Industry

Basic Information
Place of Origin: CHENGDU,CHINA
Brand Name: Metcera
Certification: ISO9001
Model Number: CCMT09T304-5FG
Minimum Order Quantity: 50pcs
Price: 1.25$ per Piece
Packaging Details: 10pcs in a plastic box
Delivery Time: 5-8 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000pcs per Month
Detail Information
Coating: PVD Coating Usage: External Turning
Hardness: HRA92.5 Material: TiCN Cermet
Color: White Product Name: CCMT09T304-5FG
Workpiece: Carbon Steel,Alloy Steel Item Name: CCMT09T304-5FG
Machining Method: Finishing And Semi-Finishing Advantage: Wear Resistance
Application: Finishing Grade: MC2210/2110
Sample: Free Transport: FedEX ,TNT,UPS,DHL
High Light:

Bending Resistant Cermet Turning Inserts

,

Mining Industry Cermet Turning Inserts

,

oxidation resistant cermet cutting tools


Product Description

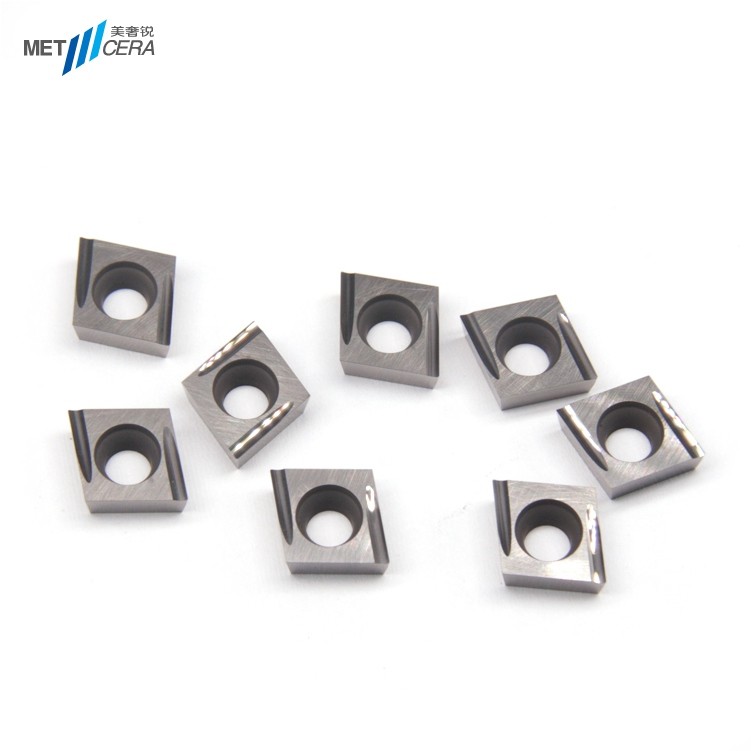

PVD Coating CCMT09T304-5FG Cermet Turning Inserts





Description of Metcera Grade



Grade Density(g/cm3) Hardness (HRA) Transverse Rupture Strength(MPa Fracture Toughness(MPa*m1/2) Workpiece Applications Features
MC102A 7.1 92.8 2000 8.5 Aluminium Alloy, Nonferrous Alloy, Carbon Steel Finishing, Semi-finishing, grooving Low cutting force, high anti-adhensive, high quality roughness
MC102B 7.1 93.2 1800 8.0 Bearing Steel ID/OD grooving, RD chamfer, sealing groove, in bearing industry High red-hardness and wear resistance for dry cutting
MC1020 6.6 92.5 1600 9.5 Carbon steel with hardness under 35HRC, Alloyed Steel Finishing, Semi-finishing Exordinary wear resistance in continous finishing machining. Provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials
MC2010 6.8 92.8 2100 9.0 Carbon steel with hardness under 38HRC, Alloyed Steel Finishing, Semi-finishing Anti-collapse and wear resistance performance strengthened materials is utilized which can provide extra reliable roughness for extensive cutting conditions



About  Cermet Turning Inserts



Cermet inserts are made of ceramic raw materials and metal.It have the advantage of both metal and ceramic,it have the same high wear resistance and high bending resistance as the metal material,also have high temperature resistance, high strength resistance,oxidation resistance as the ceramic material, they can be used for mining, metallergy and machinery,etc



Cermet inserts can be used in very poor working conditions in order to improve the life of the workpiece. Since it has a strong high temperature corrosion resistance, so that Cermet products are also used in a high temperature corrosive environment



Bending Resistant Cermet Turning Inserts For Mining Industry 0



Bending Resistant Cermet Turning Inserts For Mining Industry 1

QC:



Bending Resistant Cermet Turning Inserts For Mining Industry 2



Package:

Bending Resistant Cermet Turning Inserts For Mining Industry 3



Bending Resistant Cermet Turning Inserts For Mining Industry 4



Bending Resistant Cermet Turning Inserts For Mining Industry 5

FAQ

Q:Are you trading company of manufacturer?

A:We are manufacturer.



Q:Do you provide samples?Is it free or extra?

A:Yes,we could offer the samples for free.



Q:What kind of payment terms you accept?

A:T/T,West Union,Paypal,Credit Card and other main terms.



Q:Do you provide customized product service?

A:Yes.



Q:What kind of machines are you using?

A:Osterwalder presser,Agathon Grinder,Nachi manipulator,etc.



Q:When is the leading time?

A:Normally 10 days after receiving your payment,but it can be negotiated based on order qty and production schedule.
