ISO Certification CNC Turning Inserts For Mild Steel High Abrasion Resistance

Basic Information
Place of Origin: China
Brand Name: Metcera
Certification: ISO
Model Number: WNGG080404R-S
Minimum Order Quantity: 10 pcs
Price: USD $2.1/pc
Packaging Details: 10pcs in one plastic box; 5 plastic boxes in one carton box
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100,000 pcs per month
Detail Information
Name: CNC Turning Inserts Certification: GB/T 19001-2016 /ISO9001:2015
Workpiece: Mild Steel Coating: PVD
Certification: ISO Hardness: 40HRC
Range Of Machining: Finishing
High Light:

cnc tool insert

,

hard turning inserts


Product Description

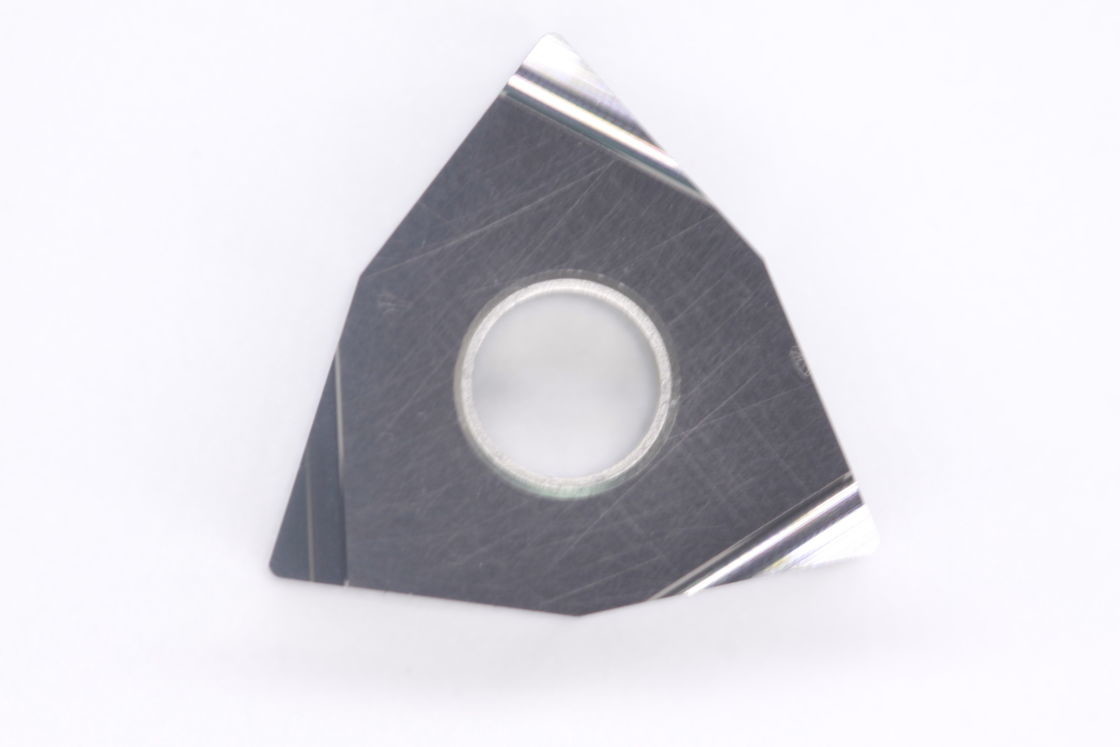

ISO Certification CNC Turning Inserts For Mild Steel High Abrasion Resistance

Ti (C,N) based cermet is a new and prospective material which not only possess the qualities of toughness, high thermal conductivity and good heat stability of matals, but also possess the qualities of high hardness, high red hardness and corrosion resistance of ceramics. The unique physical and chemical properties of cermet make it promising in the manufacturing of special cutting tools, wear parts and corrosion-resistance parts.



1. Description



Type: Turning insert

Material: Cermet

Model Number: WNGG080404R-S

Origin: China

Application: Turning

Advantage: Perfect surface

Grades: MC1020

ISO grade: P10, P20

Coating: Coating or uncoating

Lead time: Within one week normally

Term of payment : T/T





2. Advantages of Cermet



  •  High surface finishing and semi-finishing on the workpiece.



  •  High oxidation resistance



  •  ​Hign chemical stability



  •  Low density



  •  Natural resources advantag



3. Technical Details

  • R-S Chip Breaker

ISO Certification CNC Turning Inserts For Mild Steel High Abrasion Resistance 0



  • Size &Grade
Type Size Grade
WNGG080404R-S I.C S Re MC1020 MC1120
12.7 4.76 0.4 Y Y





4. ​Advanced preparation technology of the whole industrial chain





ISO Certification CNC Turning Inserts For Mild Steel High Abrasion Resistance 1





































4. Grade Introduction





Cermet Grade Introduction



   Grade



Density

(g/cm3)



Hardness

(HRA)

Transverse Rupture Strength

(MPa)



Fracture Toughness (MPa*m1/2)

 Workpiece

 Applications

    Features

  MC1020

     6.8

    92.5

    2200

     9.0

Carbon steel with hardness under 28HRC, Alloyed Steel

Finishing, Semi-finishing

Exordinary wear resistance in continous finishing machining. Provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials

MC1120

    6.8

    92.5

     2200

     9.0

Carbon steel with hardness under 28HRC, Alloyed Steel

Finishing,

Semi-finishing

Exordinary wear resistance in continous finishing machining with TiC/Ti(CN) coating, provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials





5. Why Choose Us

  •  The sole one in China focus on cermet products only and cermet grinding solution,



  • Manufacturer of integrating row materials, R &D, design, manufactureing.



  • Over 30 years focus on cermet materials research and development.





6. Manufacture Show



ISO Certification CNC Turning Inserts For Mild Steel High Abrasion Resistance 2

ISO Certification CNC Turning Inserts For Mild Steel High Abrasion Resistance 3

ISO Certification CNC Turning Inserts For Mild Steel High Abrasion Resistance 4

ISO Certification CNC Turning Inserts For Mild Steel High Abrasion Resistance 5





ISO Certification CNC Turning Inserts For Mild Steel High Abrasion Resistance 6
