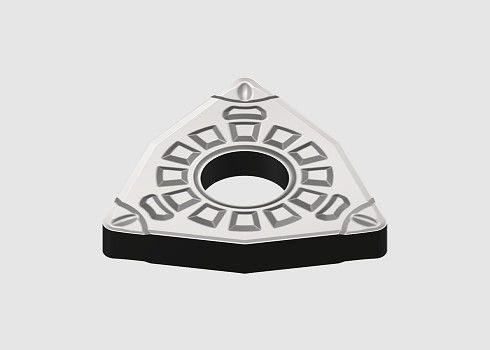

Forged Steel Workpiece CNC Turning Inserts Long Life Time WNMG080408-5FG

Basic Information
Place of Origin: China
Brand Name: Metcera
Certification: ISO
Model Number: WNMG080408-5FG
Minimum Order Quantity: 50 Pcs
Price: $0.99-$1.16/pc
Packaging Details: 10 pcs in a plastic box; 5 plastic boxes in a carton box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 100,000 pcs per month
Detail Information
Material: Cermet Workpiece: Forged Steel
Hardness: < 40HRC Application: Finishing
Advantage: Long Life Time Coating Color: Gold /Grey
High Light:

cnc tool insert

,

hard turning inserts


Product Description


CNC Cutting Tools Cermet Turning Inserts WNMG080408-5FG with Long Life Time

1.  What is Cermet
Ti (C,N) based cermet is a new and prospective material which not only possess the qualities of toughness, high thermal
conductivity and good heat stability of metals, but also posses the qualities of high hardness, high red hardness and
corrosion resistance of ceramics. The unique physical and chemical properties of cermet make it promising in the
manufacturing of special cutting tools, wear parts and corrosion- resistance parts.


2.  Advantages of Cermet

  • High quality surface on the workpiece for finishing and semi - finishing.Turning/ milling instead of grinding can be realized;
  • High oxidation resistance -- High red hardness and High cutting speed in Dry cutting (Environmentally friendly);
  • High chemical stability -- No Built - up edge (No chemical interaction between workpiece and cutting edge);
  • Low density -- Low cost , lightweight operation; Low cutting force -- Low noise machining;
  • Natural resources advantage -- less W&Co(Strategic reserve resources)needed.
  • In the long run, raw materials are easier to obtain.


3.  Grade Introduction of Cermet




Cermet Grade Introduction

Grade



Density

(g/cm3)



Hardness

(HRA)

Transverse

Rupture Strength

(MPa)

Fracture

Toughness

(MPa*m1/2)

Workpiece

Applications

Features







MC1020







6.8







92.5







2200







9.0





Carbon steel with hardness

under 28HRC, Alloyed Steel





Finishing,

Semi-finishing

Exordinary wear resistance in continous finishing machining.
Provides stable finishing to machine steel, as well as gray cast iron and sintered alloy.
It's a high wear resistance and high cost performance uncoated materials







MC2010







6.8







92.8







2100







9.0





Carbon steel with hardness

under 35HRC, Alloyed Steel





Finishing,

Semi-finishing

Anti-collapse and wear resistance performance strengthened materials is utilized
which can provide extra reliable roughness for extensive cutting conditions







MC1120







6.8







92.5







2200







9.0





Carbon steel with hardness

under 28HRC, Alloyed Steel





Finishing,

Semi-finishing

Exordinary wear resistance in continous finishing machining with TiC/Ti(CN) coating, provides
stable finishing to machine steel, as well as gray cast iron and sintered alloy.
It's a high wear resistance and high cost performance uncoated materials







MC2210







6.8







92.8







2100







9.0





Carbon steel with hardness

under 36HRC, Alloyed Steel





Finishing,

Semi-finishing

High lubricant performance PVD coating is used in this grade to realize the high class machining.
It is a coated cermet with both high wear resistance to ensure high class surface machining in univeral applications



4.  Chip Breaker Introduction of Cermet


Forged Steel Workpiece CNC Turning Inserts Long Life Time WNMG080408-5FG 0


5.  Successful Replacement Case

Forged Steel Workpiece CNC Turning Inserts Long Life Time WNMG080408-5FG 1

Material of workpiece:#20 Steel
Diameter of workpiece:38mm
Insert Type:WNGM080404-5FG
Insert Grade:MC1020
Cutting Depth:1.5mm
RPM:2400r/min
Feed:400mm/min
Processing Mode:Wet
Life Time:100Pcs
Comparing to Kyocera TN60 WNMG080404-HQ:100Pcs
