PVD Coating Metal Ceramic Lathe Inserts With Long Life Time WNMG080408

Basic Information
Place of Origin: China
Brand Name: Metcera
Certification: ISO
Model Number: WNMG080408-TS
Minimum Order Quantity: 10 pcs
Price: USD $1.16/pc
Packaging Details: 10pcs in one plastic box; 5 plastic boxes in one carton box
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100,00 pcs per month
Detail Information
Certification: GB/T 19001-2016 /ISO9001:2015 Workpiece: Steel
Coating: PVD Color: Gold &Grey
Grade: P Hardness: 40HRC
Range Of Machining: Semi Finishing-Finishing
High Light:

lathe turning inserts

,

iso turning inserts


Product Description

PVD Coating Metal Ceramic Lathe Inserts With Long Life Time WNMG080408

Ti (C,N) based cermet is a new and prospective material which not only possess the qualities of toughness, high thermal conductivity and good heat stability of matals, but also possess the qualities of high hardness, high red hardness and corrosion resistance of ceramics. The unique physical and chemical properties of cermet make it promising in the manufacturing of special cutting tools, wear parts and corrosion-resistance parts.

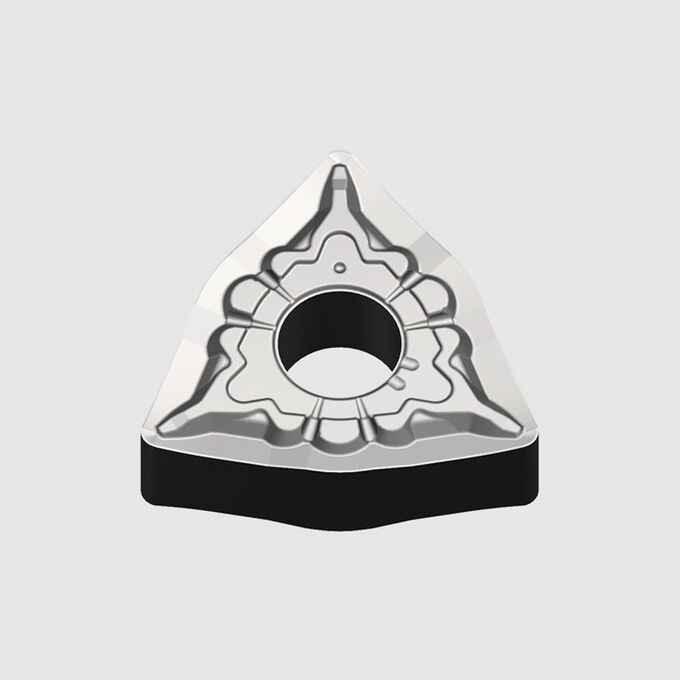

WNMG080408-TS



PVD Coating Metal Ceramic Lathe Inserts With Long Life Time WNMG080408 0













WNMG080408-TS



PVD Coating Metal Ceramic Lathe Inserts With Long Life Time WNMG080408 1





































1. Description



Type: Turning insert

Material: Cermet

Model Number: WNMG080408-TS

Origin: China

Application: Turning

Advantage: Perfect surface

Grades: MC1020

ISO grade: P10, P20

Coating: Coating or uncoating

Lead time: Within one week normally

Term of payment : T/T





2. Advantages of Cermet



  •  High surface finishing and semi-finishing on the workpiece.
  •  High oxidation resistance
  • Hign chemical stability
  • Low density
  • Natural resources advantag

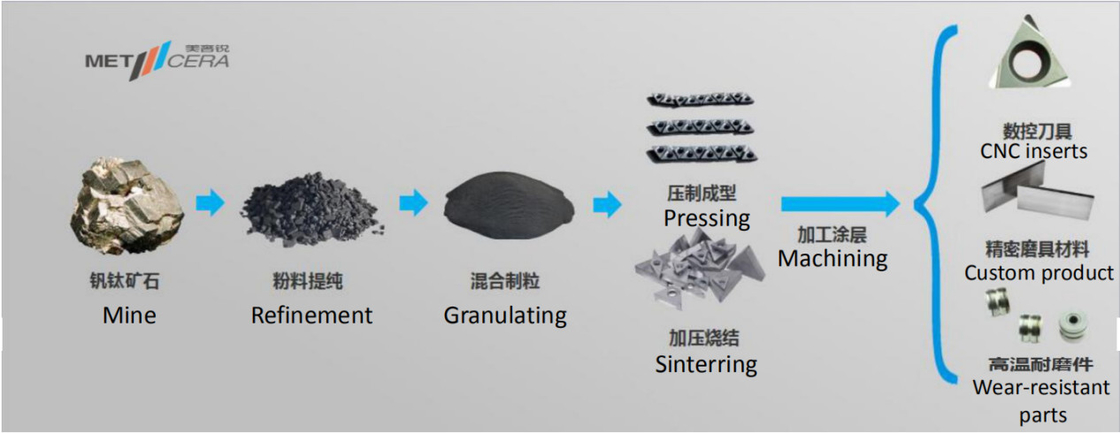

3. ​Advanced preparation technology of the whole industrial chain





PVD Coating Metal Ceramic Lathe Inserts With Long Life Time WNMG080408 2





































4. Grade Introduction





Cermet Grade Introduction



   Grade



Density

(g/cm3)



Hardness

(HRA)

Transverse Rupture Strength

(MPa)



Fracture Toughness (MPa*m1/2)

 Workpiece

 Applications

    Features

  MC1020

     6.8

    92.5

    2200

     9.0

Carbon steel with hardness under 28HRC, Alloyed Steel

Finishing, Semi-finishing

Exordinary wear resistance in continous finishing machining. Provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials

  MC2010

    6.8

    92.8

     2100

     9.0

Carbon steel with hardness under 35HRC, Alloyed Steel

Finishing,

Semi-finishing

Anti-collapse and wear resistance performance strengthened materials is utilized which can provide extra reliable roughness for extensive cutting conditions

MC1120

    6.8

    92.5

     2200

     9.0

Carbon steel with hardness under 28HRC, Alloyed Steel

Finishing,

Semi-finishing

Exordinary wear resistance in continous finishing machining with TiC/Ti(CN) coating, provides stable finishing to machine steel, as well as gray cast iron and sintered alloy. It's a high wear resistance and high cost performance uncoated materials

MC2210

 6.8

    92.8

   2100

    9.0

Carbon steel with hardness under 36HRC, Alloyed Steel

Finishing,

Semi-finishing

High lubricant performance PVD coating is used in this grade to realize the high class machining. It is a coated cermet with both high wear resistance to ensure high class surface machining in univeral applications





5. Why Choose Us

  •  The sole one in China focus on cermet products only and cermet grinding solution,



  • Manufacturer of integrating row materials, R &D, design, manufactureing.



  • Over 30 years focus on cermet materials research and development.

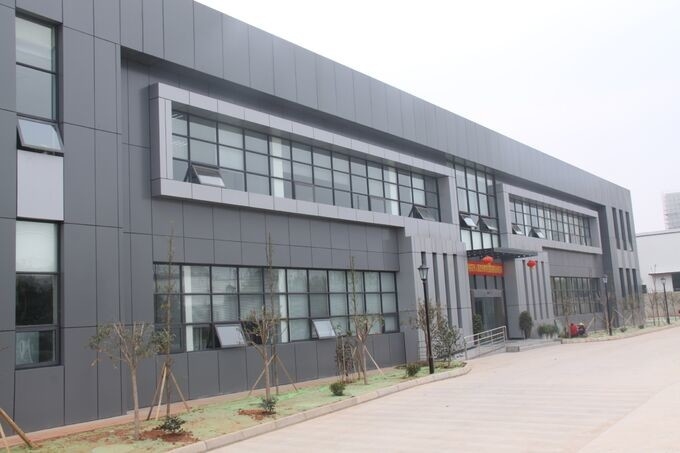

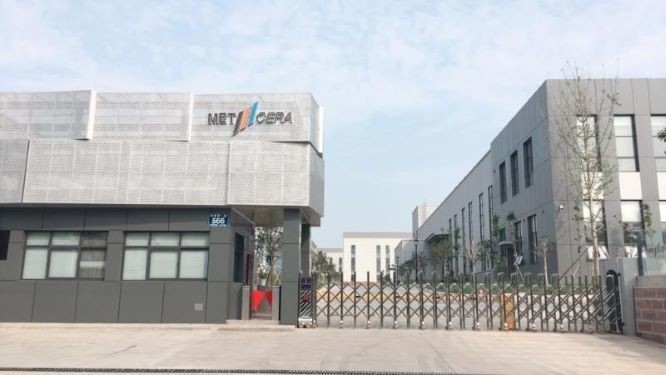

6. Manufacture



PVD Coating Metal Ceramic Lathe Inserts With Long Life Time WNMG080408 3

PVD Coating Metal Ceramic Lathe Inserts With Long Life Time WNMG080408 4

PVD Coating Metal Ceramic Lathe Inserts With Long Life Time WNMG080408 5

PVD Coating Metal Ceramic Lathe Inserts With Long Life Time WNMG080408 6





PVD Coating Metal Ceramic Lathe Inserts With Long Life Time WNMG080408 7
