Uncoated Cermet Turning Inserts With  Excellent Heat Resistance CCMT09T308-5FG

Basic Information
Place of Origin: CHENGDU,CHINA
Brand Name: Metcera
Certification: ISO9001
Model Number: CCMT09T308-5FG
Minimum Order Quantity: 50pcs
Price: 0.98$ per Piece
Packaging Details: 10pcs in a plastic box
Delivery Time: 5-8 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000pcs per Month
Detail Information
Coating: Uncoated Usage: External Turning
Hardness: HRA92.8 Material: TiCN Cermet
Color: Gray Product Name: CCMT09T308-5FG
Workpiece: Carbon Steel,Alloy Steel Item Name: CCMT09T308-5FG
Machining Method: Finishing Advantage: Wear Resistance
Application: Finishing Grade: MC2010
Sample: Free Transport: FedEX ,TNT,UPS,DHL
High Light:

lathe tool inserts

,

iso turning inserts


Product Description

Uncoated Cermet Turning Inserts With Excellent Heat Resistance CCMT09T308-5FG



Description of Grade MC2010



Grade

Density

(g/cm³)

Hardness

(HRA)

Transverse Rupture Strength(Mpa)

Fracture

Toughness

Workpiece Apllication Features
MC2010 6.8 92.8 2100 9.0 Carbon steel with hardness under 35HRC, Alloyed Steel Finishing,Semi-Finishing Anti-collapse and wear resistance performance strengthened materials is utilized which can provide extra reliable roughness for extensive cutting conditions



Application of Cermet



Ti(CN) based cermet is a new and prospective material which not only possess the qualities of toughness,high thermal conductivity and good heat stability of metals,but also possess the qualities of high hardness,high red hardness and corrosion resistance of ceramics.The unique physical and chemical properties of cermet make is promising in the manufacturing of special cutting tools,wear parts and corrosion-resistance parts.







Uncoated Cermet Turning Inserts With  Excellent Heat Resistance CCMT09T308-5FG 0

Uncoated Cermet Turning Inserts With  Excellent Heat Resistance CCMT09T308-5FG 1





QC:



Uncoated Cermet Turning Inserts With  Excellent Heat Resistance CCMT09T308-5FG 2

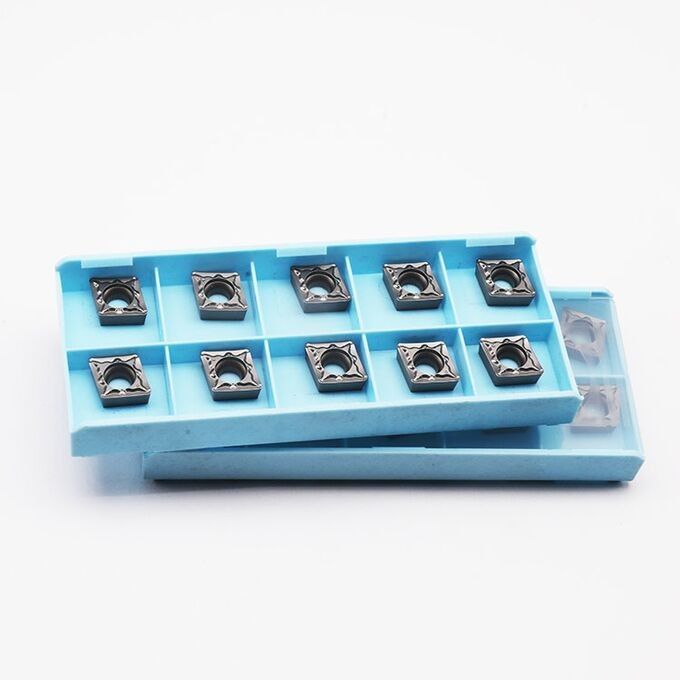

Package:

Uncoated Cermet Turning Inserts With  Excellent Heat Resistance CCMT09T308-5FG 3

Advantages of cermet



1. High quality surface on the workpiece for finishing and semi-finishing.Turning/milling instead of grinding can be realized;

2. High oxidation resistance -High red hardness and high cutting speed in drying cutting (environmentally friendly);

3. High chemical stability-no bulit-up edge (no chemical interaction between workpiece and cutting edge);

4. Low density-low cost,light weight operation,low cutting force,low noise machining;

5. Natural resources advantage-less W&Co(strategic reserve resources)needed.In the long run,raw materials are easier to obtain.
